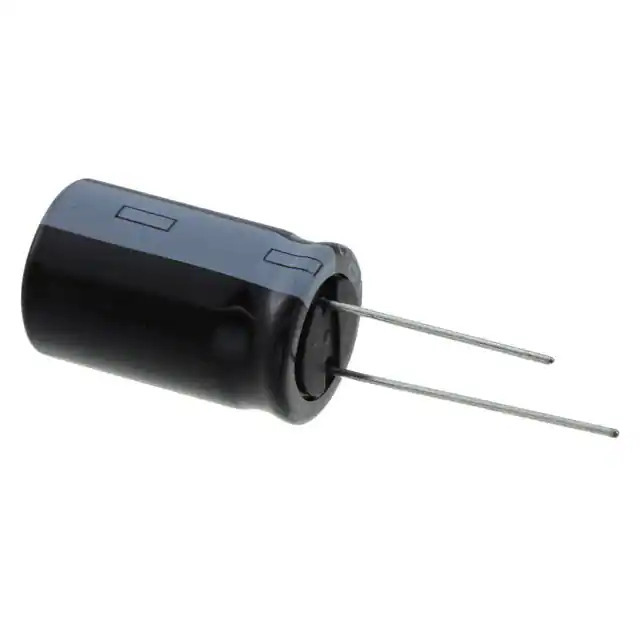

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXC
Package Bulk
Product Status Active
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 675 mA @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358140-250BXC120MEFC18X20
Ultra Librarian 3D Model Ultra Librarian 250BXC120MEFC18X20 CAD Model

Description

The Rubycon BXC series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Capacitance: 120 μF
  • Voltage Rating: 250 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 675 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.5 A @ 100 kHz
  • Lead Spacing: 0.295" (7.50mm)
  • Size: 0.709" Dia (18.00mm)
  • Mounting Type: Through Hole
  • Height: 0.866" (22.00mm)
  • Lifetime: 12000 Hours @ 105°C
  • Polarization: Polarized
  • Manufacturer: Rubycon
  • Series: BXC
