Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.056 A @ 120 Hz
Ripple Current @ High Frequency 1.76 A @ 100 kHz
Impedance 28 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Other Names 1189-1147
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307290-16ZLH1000MEFC10X16
Ultra Librarian 3D Model Ultra Librarian 16ZLH1000MEFC10X16 CAD Model

Description

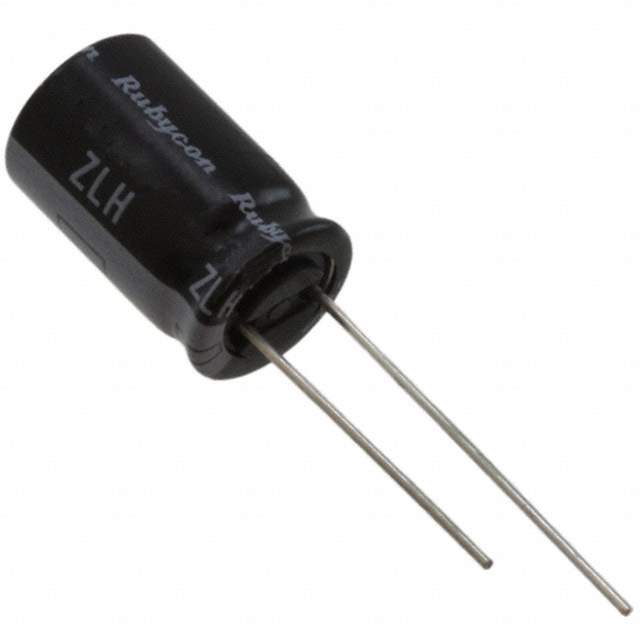

The Rubycon Aluminum Electrolytic Capacitor is a high-quality electronic component that is ideal for general-purpose applications.

  • Capacitance: 1000 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Mounting Type: Through-hole
  • Package: Radial, can-shaped package
  • Lead Spacing: 0.197" (5.00mm)
  • Impedance: 28 mOhms
  • ESR (Equivalent Series Resistance): Not specified
  • Lifetime: 10000 Hrs @ 105°C
  • Polarized: Yes
  • Temperature Range: -40°C ~ 105°C
  • Package: Bulk
  • Standard Package: 1,000
  • Ripple Current @ Low Frequency: 1.056 A @ 120 Hz
  • Ripple Current @ High Frequency: 1.76 A @ 100 kHz
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
