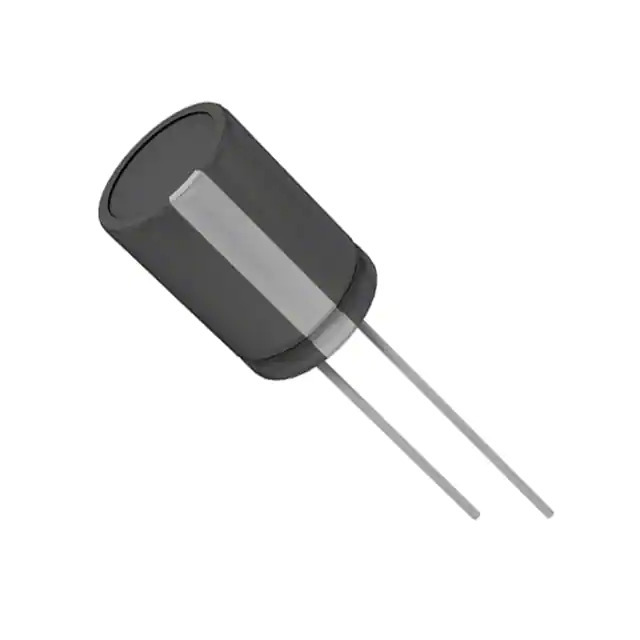

Same model may have multiple batches, images only for reference.

16YXF330MEFCTA8X11.5

Name: 16YXF330MEFCTA8X11.5
Brand: Rubycon
SKU: 1357651
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16YXF330MEFCTA8X11.5
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 16V RADIAL / 330 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	YXF
Package	Tape & Box (TB)
Product Status	Active
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	280 mA @ 120 Hz
Ripple Current @ High Frequency	400 mA @ 100 kHz
Impedance	250 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357651-16YXF330MEFCTA8X11.5
Ultra Librarian 3D Model	Ultra Librarian 16YXF330MEFCTA8X11.5 CAD Model

Alternative Products

Description

The Rubycon YXF series capacitors are aluminum electrolytic capacitors designed for general purpose applications.

Capacitance: 330 µF
Voltage - Rated: 16 V
Tolerance: ±20%
Ripple Current @ Low Frequency: 280 mA @ 120 Hz
Ripple Current @ High Frequency: 400 mA @ 100 kHz
Lead Spacing: 0.197" (5.00mm)
Size / Dimension: 0.315" Dia (8.00mm)
Height - Seated (Max): 0.512" (13.00mm)
Lifetime @ Temp.: 7000 Hrs @ 105°C
Polarization: Polar
Impedance: 250 mOhms
Manufacturer: Rubycon
