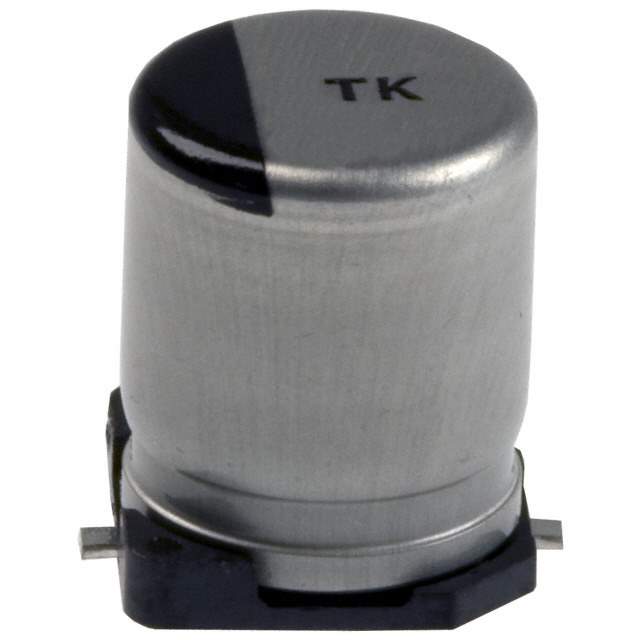

EEE-TK1V470P Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TK
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 300mOhm @ 100kHz
Lifetime @ Temp. 3000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 195 mA @ 120 Hz
Ripple Current @ High Frequency 197 mA @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-TK
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE3735TR,PCE3735CT,EEETK1V470P,PCE3735DKR
Standard Package 500
Win Source Part Number 1056870-EEE-TK1V470P
Ultra Librarian 3D Model Ultra Librarian EEE-TK1V470P CAD Model

Description

The Panasonic Electronic Components EEE-TK series aluminum electrolytic capacitor is designed for general purpose applications.

  • Capacitance: 47 µF
  • Rated Voltage: 35 V
  • Height: 0.402" (10.20mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Polarization: Polar
  • ESR (Equivalent Series Resistance): 300mOhm @ 100kHz
  • Lifetime: 3000 Hrs @ 125°C
  • Package: Tape & reel
  • Standard Package: 500
  • Applications: Power supplies, lighting applications, and audio equipment
