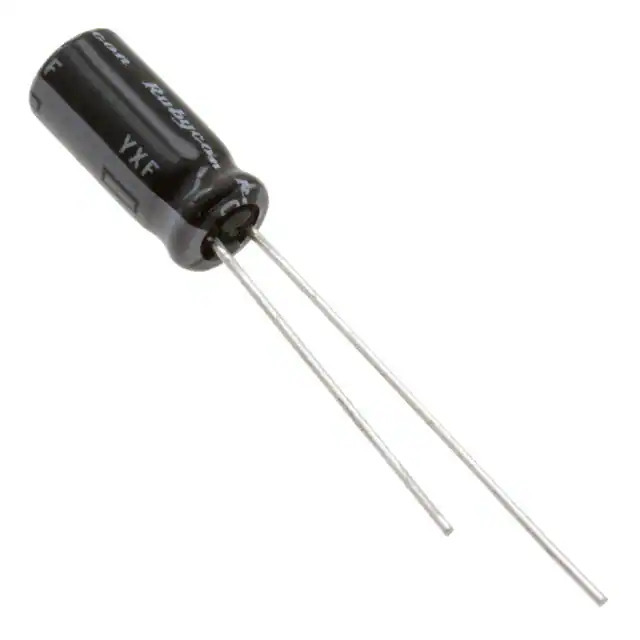

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 105 mA @ 120 Hz
Ripple Current @ High Frequency 150 mA @ 100 kHz
Impedance 900 mOhms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358071-10YXF100MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 10YXF100MEFC5X11 CAD Model

Description

The Rubycon 1358071-10YXF100MEFC5X11 is a compact aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage Rating: 10 V
  • Temperature Range: -40°C to 105°C
  • Package: Radial, can
  • Mounting Type: Through-Hole
  • Lead Spacing: 2.00mm
  • Size: 0.197" (5.00mm) diameter
  • Seated Height: 0.492" (12.50mm)
  • Lifetime: 4000 hours @ 105°C
  • Ripple Current: 105 mA @ 120 Hz
  • Series: YXF
  • Manufacturer: Rubycon
  • Product Status: Active
