Same model may have multiple batches, images only for reference.

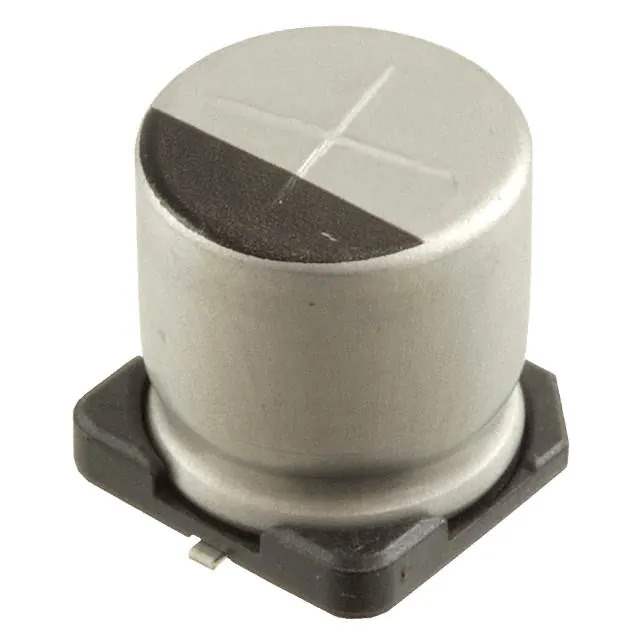

UCD1J101MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCD1J101MNL1GS

Part No UCD1J101MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V SMD / 100 μF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCD1J101MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 200 mA @ 120 Hz
Ripple Current @ High Frequency 400 mA @ 100 kHz
Impedance 350 mOhms
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 851667-UCD1J101MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1J101MNL1GS CAD Model

Description

The UCD1J101MNL1GS is an automotive-grade aluminum electrolytic capacitor from the UCD series.

  • Product Name: UCD1J101MNL1GS
  • Series: UCD
  • Grade: Automotive
  • Type: Aluminum Electrolytic Capacitor
  • Capacitance: 100µF
  • Voltage Rating: 63V
  • Package: Radial, Can - SMD
  • Size: 0.394" Dia (10.00mm)
  • Height: 0.413" (10.50mm)
  • Tolerance: ±20%
  • Impedance: 350 mOhms
  • Lifetime: 2000 hours @ 105°C
  • Mounting Type: Surface Mount
  • Manufacturer: Nichicon
  • Product Status: Active
