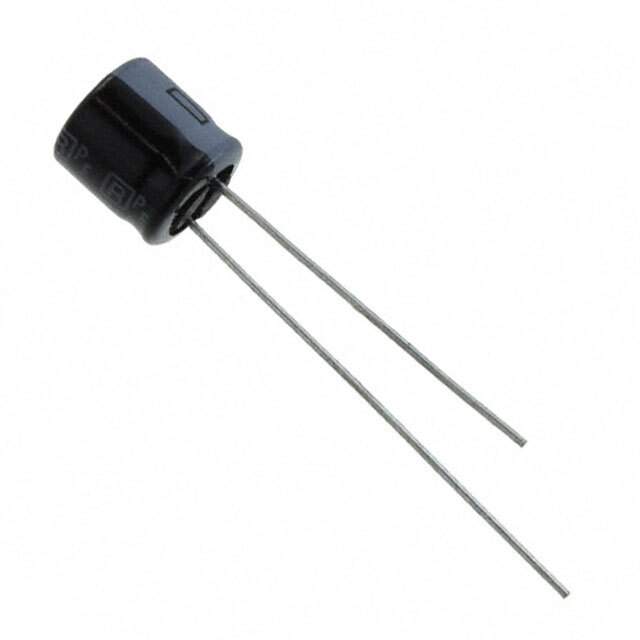

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MH7
Package Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 87 mA @ 120 Hz
Ripple Current @ High Frequency 104.4 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.335" (8.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 5,000
Win Source Part Number 1034369-10MH7100MEFC6.3X7
Ultra Librarian 3D Model Ultra Librarian 10MH7100MEFC6.3X7 CAD Model

Description

The Rubycon 1034369-10MH7100MEFC6.3X7 is a bulk packaged aluminum electrolytic capacitor with a capacitance of 100 μF and a voltage rating of 10 V.

  • Series: MH7
  • Capacitance: 100 μF
  • Voltage Rating: 10 V
  • Mounting Type: Through-Hole
  • Tolerance: ±20%
  • Lead Spacing: 0.098" (2.50mm)
  • ESR (Equivalent Series Resistance): Not Specified
  • Polarized: Yes
  • Ripple Current: 87 mA @ 120 Hz, 104.4 mA @ 10 kHz
  • Lifetime: 1,000 hours @ 105°C
  • Dimensions: 0.248" Dia (6.30mm), 0.335" (8.50mm) Height (Seated)
