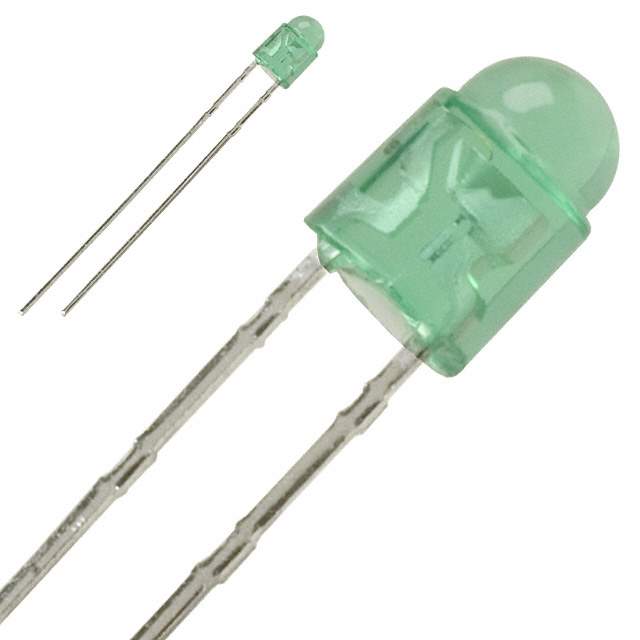

SLR-343MC3F Real Image
Same model may have multiple batches, images only for reference.

SLR-343MC3F

Part No SLR-343MC3F
Manufacturer Rohm Semiconductor
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color Green 563nm 2-Pin T-1 Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Color Green
Dominant Wavelength 572 nm
Forward Current 10 mA
Forward Voltage 2.1 V
Height 5.4 mm
Illumination Color Green
Lead Free Yes
Lens Color Green
Lens Style Circular, Clear, Colorless, Diffused, Dome
Lens Transparency Clear
Luminous Intensity 25 mcd
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Through Hole
Number of LEDs 1
Number of Pins 2
Radiation Hardening No
RoHS Compliant
Test Current 10 mA
Viewing Angle 40 °
Win Source Part Number 1093663-SLR-343MC3F
Categories Optics - LEDs - Light Pipes
Manufacturer Rohm Semiconductor
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian SLR-343MC3F CAD Model

Description

The LED (Light Emitting Diode) is a high-quality electronic component that is perfect for use in a wide range of applications manufactured by Rohm Semiconductor.

  • Mounting Type: SMD (SMT)
  • Forward Voltage: 2.1 V
  • Luminous Intensity: 25 mcd
  • Forward Current: 10 mA
  • Viewing Angle: 40 degrees
  • Lens Color: Green
  • Lens Transparency: Clear
  • Height: 5.4 mm
  • Number of Pins: 2
  • Case/Package: Radial
  • Lens Style: Circular, Clear, Colorless, Diffused, Dome
  • Dominant Wavelength: 572 nm
  • Illumination Color: Green
  • RoHS Compliance: RoHS compliant and lead-free
  • Maximum Operating Temperature: 85 degrees Celsius
  • Minimum Operating Temperature: -25 degrees Celsius
