Same model may have multiple batches, images only for reference.

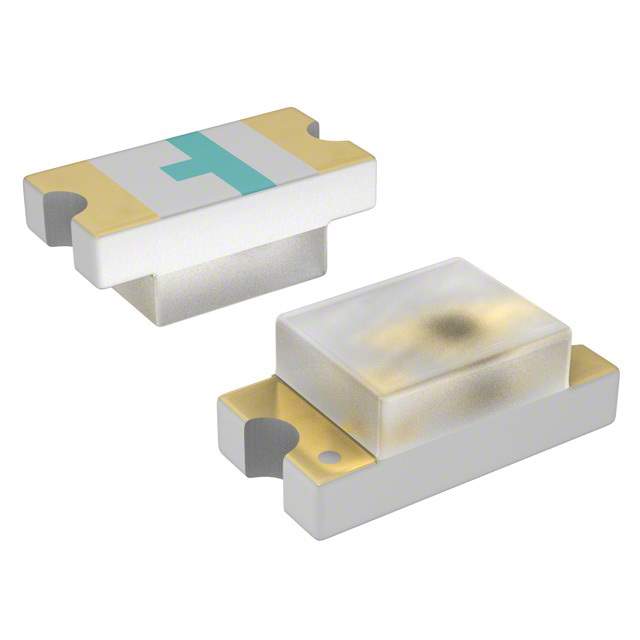

SM0603UYC Real Image
Same model may have multiple batches, images only for reference.

SM0603UYC

Part No SM0603UYC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED YELLOW CLEAR 0603 SMD  /  Yellow 592nm LED Indication - Discrete 2.1V 0603 (1608 Metric)
Datasheet
SM0603UYC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 70mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Dominant 592nm
Wavelength - Peak 593nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.60mm
Base Product Number SM0603
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 492-1325-6,492-1325-2,492-1325-1
Standard Package 4,000
Win Source Part Number 1095993-SM0603UYC
Ultra Librarian 3D Model Ultra Librarian SM0603UYC CAD Model

Description

The SM0603UYC LED indication component is a yellow LED emitter used in optoelectronics.

  • Viewing Angle: 130 degrees
  • Millicandela Rating: 70mcd
  • Voltage-Forward (Vf): 2.1V
  • Current Test: 20mA
  • Wavelength-Dominant: 592nm
  • Wavelength Peak: 593nm
  • Package: Tape and reel
  • Quantity per Package: 4,000
