Products specifications

Manufacturer Rohm Semiconductor
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 650V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Maximum) at If 1.55V at 12A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage at Vr 240μA at 600V
Capacitance at Vr, F 438pF at 1V, 1MHz
Mounting Style Through Hole
Manufacturer Package TO-220-2 Full Pack
Supplier Device Package TO-220FM
Operating Temperature - Junction 175°C (Maximum)
Part Number Series SCS215
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813163-SCS215AMC
Ultra Librarian 3D Model Ultra Librarian SCS215AMC CAD Model

Description

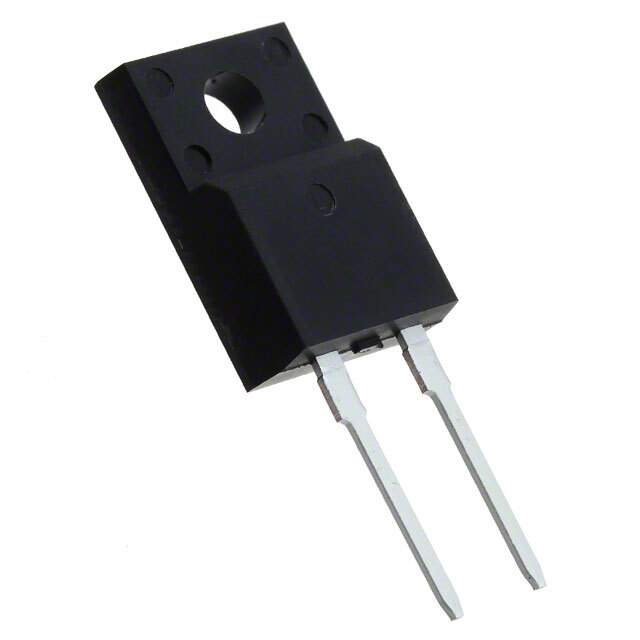

The Rohm Semiconductor SCS215AMC is a silicon carbide Schottky diode from Rohm Semiconductor.

  • Win Source Part Number: 813163-SCS215AMC
  • Packaging: Tube
  • Current: 12A
  • Voltage: 650V
  • Voltage-Forward (Vf): 1.55V @ 12A
  • Current-Reverse Leakage at Vr: 240μA @ 600V
  • Capacitance at Vr, F: 438pF @ 1V, 1MHz
