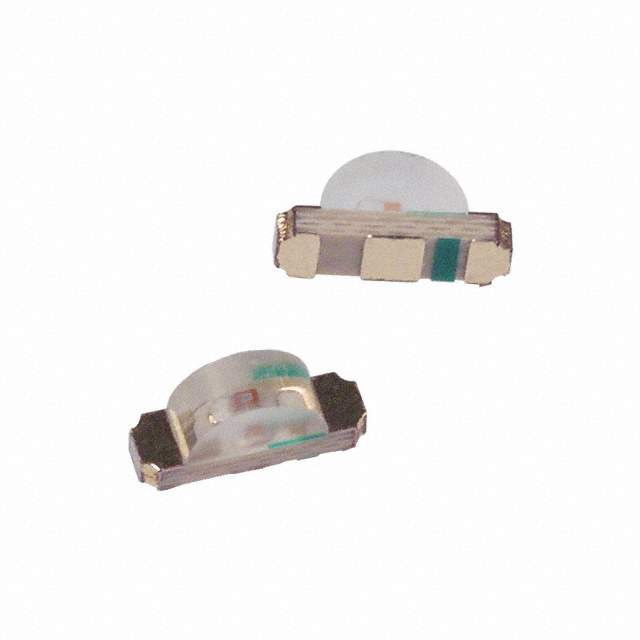

HSMD-C110 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tape and Reel
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 8mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) 2.2V
Current - Test 20mA
Viewing Angle 130°
Mounting Style SMT, Right Angle
Wavelength - Dominant 604nm
Wavelength - Peak 605nm
Manufacturer Package 2-SMD, No Lead
Supplier Device Package Chip LED
Parts Dimension 3.20mm L x 1.50mm W
Height (Maximum) 1.00mm
Family Part Number HSMD-C110
Manufacturer Pack Quantity 3,000
MSL Level 2A (4 Weeks)
Win Source Part Number 1181833-HSMD-C110
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMD-C110 CAD Model

Description

The Broadcom Limited HSMD-C110 is a chip LED that comes with a rectangular lens with a domed top.

  • Lens Transparency: clear
  • Viewing Angle: 130 degrees
  • Lens Color: colorless
  • LED Color: orange
  • Millicandela Rating: 8mcd
  • Current Test: 20mA
  • Dominant Wavelength: 604nm
  • Peak Wavelength: 605nm
  • Package Units: 3,000
  • Manufacturer Package: 2-SMD, No Lead
  • Parts Dimension: 3.20mm L x 1.50mm W
