Same model may have multiple batches, images only for reference.

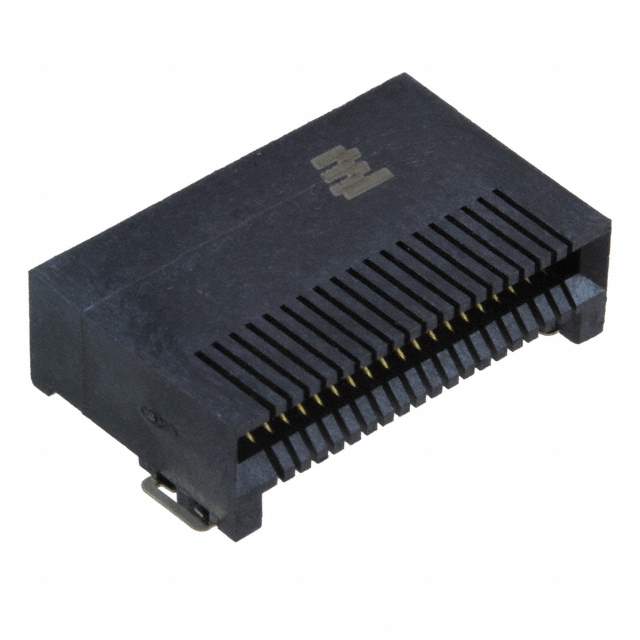

2007570-5 Real Image
Same model may have multiple batches, images only for reference.

2007570-5

Part No 2007570-5
Manufacturer TE Connectivity
Catalog Pluggable Connectors
Description REC ASSY R/A W/ H/D 38P, EVERCLE
Datasheet
2007570-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Connector Style Receptacle
Connector Type SAS, Mini
Number of Positions 26
Mounting Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 766208-2007570-5
Popularity Medium
Supply and Demand Status Balance
Family Name 2007570
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 2007570-5 CAD Model

Description

This component has a Win Source Part Number of 766208-2007570-5.

  • Positions: 26
  • Connector Type: SAS mini
  • Mounting Style: Right Angle Surface Mount
  • Connector Type: Receptacle
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Family Name: 2007570
  • Introduction Date: January 01, 2000
