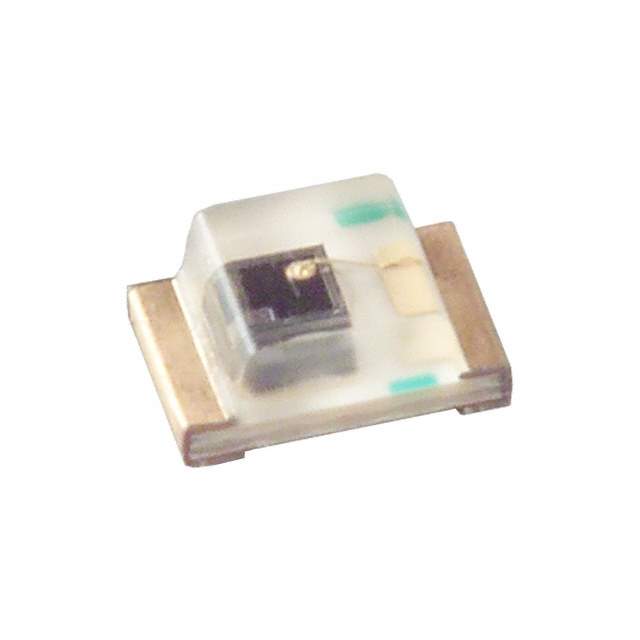

RPM-075PTT86 Real Image
Same model may have multiple batches, images only for reference.

RPM-075PTT86

Part No RPM-075PTT86
Manufacturer Rohm Semiconductor
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANS 600NM 0805 SMD
Datasheet
RPM-075PTT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
VCEO Maximum Collector-Emitter Breakdown Voltage 20V
Maximum Current Collector 10mA
Current - Dark (Id) (Max) 500nA
Wavelength 600nm
Viewing Angle 120°
Maximum Power Dissipation 50mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -30°C to 85°C (TA)
Dimension Nonstandard SMD
Win Source Part Number 027463-RPM-075PTT86
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RPM-075PTT86 CAD Model

Description

The RPM-075PTT86 by Rohm Semiconductor is a sensor and transducer electronic component that is not for new designs.
