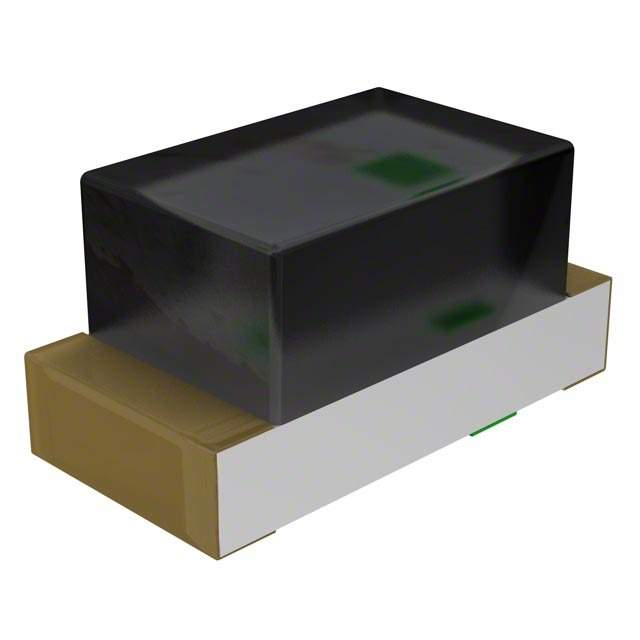

PT19-21B/L41/TR8 Real Image
Same model may have multiple batches, images only for reference.

PT19-21B/L41/TR8

Part No PT19-21B/L41/TR8
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR FLAT BK MINI SMD
Datasheet
PT19-21B/L41/TR8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100nA
Wavelength 940nm
Maximum Power Dissipation 75mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -25°C to 85°C (TA)
Dimension 0603 (1608 Metric)
Win Source Part Number 1090476-PT19-21B/L41/TR8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PT19-21B/L41/TR8 CAD Model

Description

The Everlight Electronics Co Ltd PT19-21B/L41/TR8 is a sensor that comes in a 0603 (1608 Metric) package.

  • Wavelength: 940nm
  • Maximum Current Collector: 20mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 75mW
  • Current-Dark (Id) (Max): 100nA
  • Supply and Demand Status: Balanced
