Same model may have multiple batches, images only for reference.

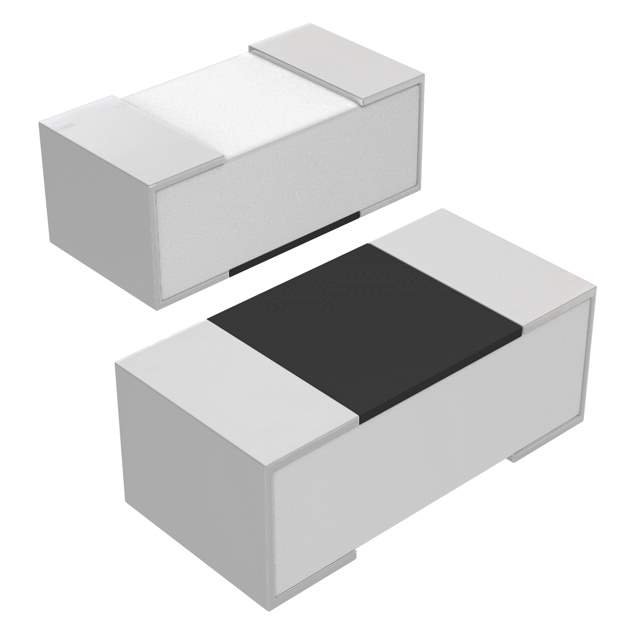

MCR006YZPJ563 Real Image
Same model may have multiple batches, images only for reference.

MCR006YZPJ563

Part No MCR006YZPJ563
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 56K OHM 5% 1/20W 0201
Datasheet
MCR006YZPJ563 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Resistance (Ohms) 56k
Tolerance ±5%
Power (Watts) 0.05W, 1/20W
Composition Thick Film
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C to 125°C
Case / Package 0201
Height - Seated (Max) 0.010" (0.26mm)
Number of Terminations 2
Win Source Part Number 103933-MCR006YZPJ563
Ultra Librarian 3D Model Ultra Librarian MCR006YZPJ563 CAD Model

Description

The MCR006YZPJ563 is a thick film resistor manufactured by Rohm Semiconductor.

  • Win Source part number: 103933
  • Resistance: 56k ohms
  • Power rating: 0.05W (1/20W)
  • Tolerance: ±5%
  • Temperature coefficient: ±250ppm/°C
  • Temperature range: -55°C to 125°C
  • Packaging: reel - TR
  • Terminations: two terminations
  • Case/package: 0201
  • Height when seated: 0.010" (0.26mm)
