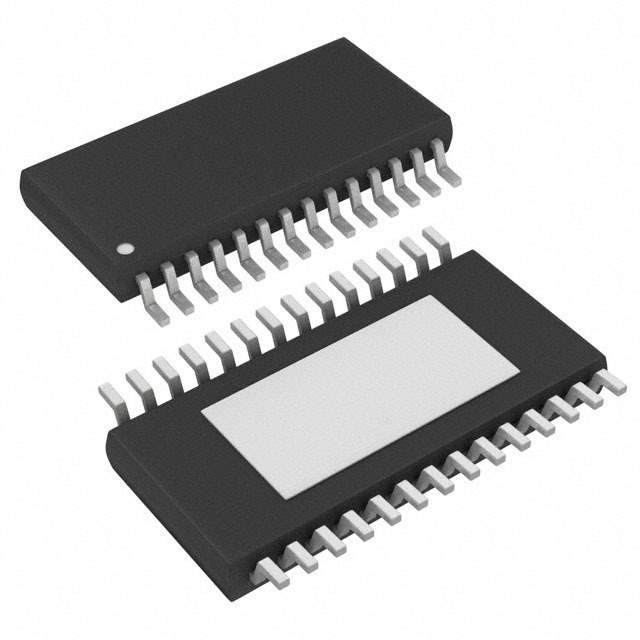

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology DMOS
Step Resolution 1, 1/2, 1/4
Applications General Purpose
Current - Output 2.4A
Voltage - Supply 19V ~ 28V
Voltage - Load 19V ~ 28V
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-HTSSOP-B
Base Product Number BD63725
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names BD63725BEFV-E2DKR,BD63725BEFV-E2CT,BD63725BEFV-E2TR
Standard Package 2,500
Win Source Part Number 1197769-BD63725BEFV-E2
Ultra Librarian 3D Model Ultra Librarian BD63725BEFV-E2 CAD Model

Description

The BD63725BEFV-E2 is a fully integrated IC that functions as a driver and control and power stage for motors.

  • Current Output: 2.4A
  • Motor Type: bipolar stepper motors
  • Voltage Range: 19V to 28V
  • Package: 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
  • Application: general purpose circuits
