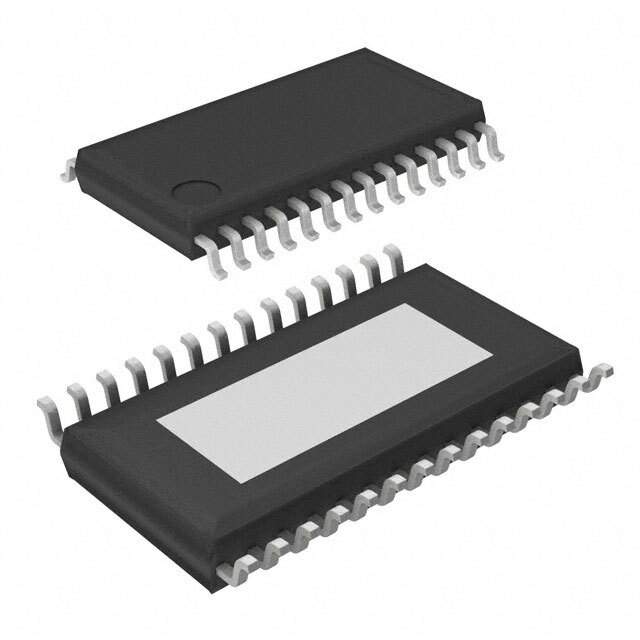

BD63520AEFV-E2 Real Image
Same model may have multiple batches, images only for reference.

BD63520AEFV-E2

Part No BD63520AEFV-E2
Manufacturer Rohm Semiconductor
Catalog PMIC - Motor Drivers, Controllers
Description IC MTR DRV BIPOLR 8-28V 28HTSSOP / Bipolar Motor Driver DMOS Parallel 28-HTSSOP-B
Datasheet
BD63520AEFV-E2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology DMOS
Step Resolution 1, 1/2, 1/4, 1/16
Applications General Purpose
Current - Output 2A
Voltage - Supply 8V ~ 28V
Voltage - Load 8V ~ 28V
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-HTSSOP-B
Base Product Number BD63520
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names BD63520AEFV-E2DKR,BD63520AEFV-E2CT,BD63520AEFV-E2TR
Standard Package 2,500
Win Source Part Number 1054914-BD63520AEFV-E2
Ultra Librarian 3D Model Ultra Librarian BD63520AEFV-E2 CAD Model

Description

The BD63520AEFV-E2 is a DMOS technology-based fully integrated driver and control power stage for bipolar stepper motors.

  • Applications: general-purpose
  • Voltage Load: 8V to 28V
  • Output Configuration: half-bridge
  • Outputs: four
  • Step Resolution: 1, 1/2, 1/4, and 1/16
  • Interface: parallel
  • Output Current: up to 2A
  • Package: 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
  • Temperature Range: -25°C to 85°C (TA)
  • Feature: fully integrated driver, control, and power stage
