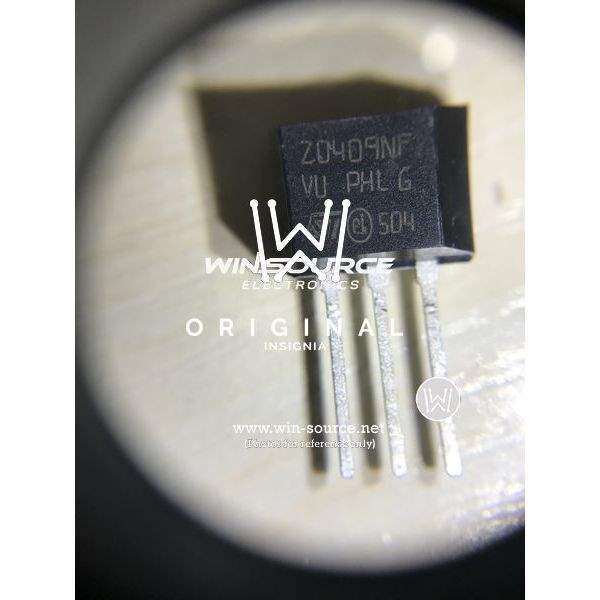

The Z0409NF is a high-performance triac manufactured by STMicroelectronics, a global semiconductor leader renowned for its innovative and reliable products. This triac is designed to control AC loads in a variety of applications, offering a seamless solution for designers looking to manage power in an efficient and effective manner.

Key Features

• Current Rating: The Z0409NF boasts a robust on-state RMS current of 4A, making it suitable for handling moderate power loads.
• Repetitive Peak Off-State Voltage: With a repetitive peak off-state voltage (VDRM/VRRM) of 600V, it ensures reliable operation even under high voltage conditions.
• Gate Trigger Voltage: The device features a low gate trigger voltage (VGT) which allows for easy triggering of the triac with minimal power.
• Trigger Current: It has a specified gate trigger current (IGT) that ensures consistent triggering while keeping power consumption low.
• Package: Packaged in a TO-202-3, this triac is compact and suitable for PCB mounting, making it ideal for space-constrained applications.
• Temperature Range: The Z0409NF operates within a wide junction temperature range, ensuring reliability and performance under varying environmental conditions.

Applications

The Z0409NF is versatile and can be used in a wide range of applications. Some typical applications include:

• Home appliances like electric heaters, kitchen aids, and lighting systems for dimming control.
• Motor control circuits for small motors used in household and office equipment.
• Industrial process control systems where precise power control is essential.
• AC solid-state switches that require robust and reliable triac components.

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The Z0409NF triac is built with this commitment in mind, ensuring that it meets stringent quality and reliability standards. This component is ideal for designers looking for a dependable solution to manage AC power in their electronic designs.
