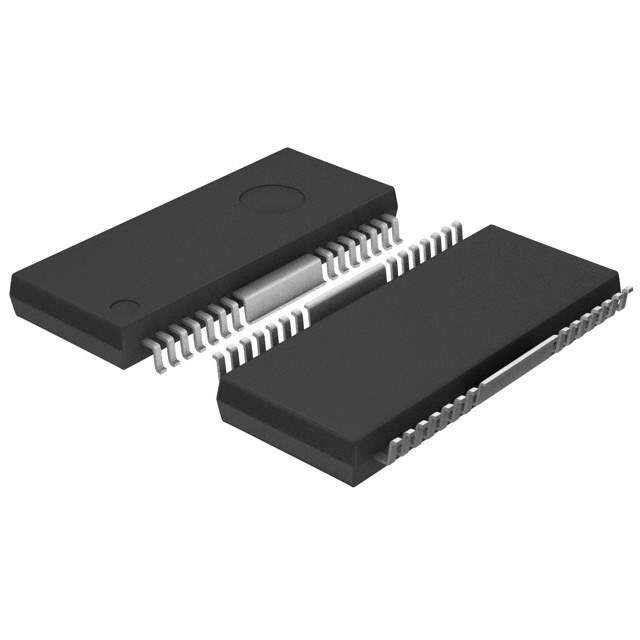

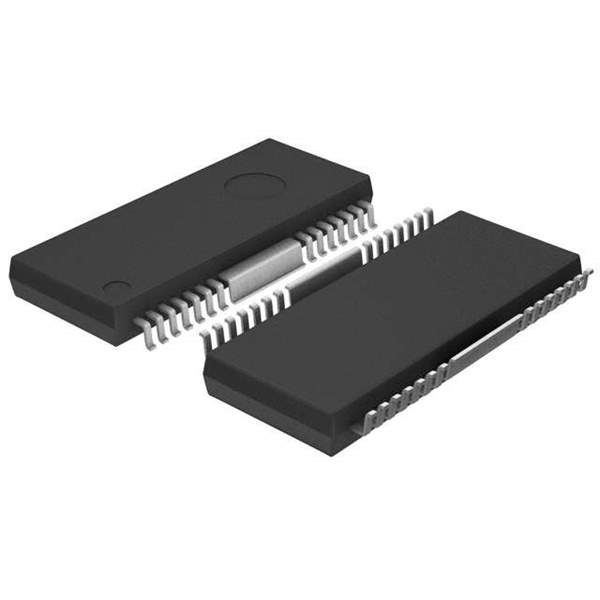

The BA5947FM is a motor driver IC designed and manufactured by Rohm Semiconductor. It is specifically designed to drive brush motors and is suitable for a variety of applications requiring precise motor control. This IC integrates multiple functions to simplify the design and implementation of motor control circuits.

Applications

• Office Automation Equipment: Used in printers, scanners, and other office devices to control paper feed motors and other actuators.
• Consumer Electronics: Found in DVD players, Blu-ray players, and other audio-visual equipment for controlling disc drive motors.
• Automotive Applications: Employed in automotive accessories such as power windows, door locks, and seat adjusters.
• Industrial Equipment: Used in small-scale industrial machinery and robotics for precise motor control.
• Gaming Devices: Controls vibration motors and other actuators in gaming consoles and controllers.

Features

• H-Bridge Driver: Provides an H-bridge configuration for bidirectional motor control.
• Built-In Protection Circuits: Includes overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown (TSD) to protect the IC and the motor.
• Low Saturation Voltage: Minimizes power loss and improves efficiency.
• Brake Function: Allows for dynamic braking of the motor.
• Forward/Reverse Control: Facilitates easy control of the motor's direction.
• Compact Package: Available in a small surface-mount package for space-saving designs.

Benefits

• Enhanced Reliability: Integrated protection circuits ensure robust operation and prevent damage from common fault conditions.
• Improved Efficiency: Low saturation voltage reduces power dissipation, leading to longer battery life in portable applications.
• Simplified Design: Integrated functions reduce the need for external components, simplifying circuit design and reducing PCB space.
• Precise Motor Control: Enables accurate and responsive control of motor speed and direction.
• Cost-Effective Solution: Offers a cost-efficient solution for motor control applications.

Additional Details

The BA5947FM typically operates with a supply voltage range of 2.5V to 15V. The maximum output current is typically around 1A. The standby current consumption is very low, making it suitable for battery-powered applications. It's commonly available in surface-mount packages such as SOP-8 or similar small outline packages. The specific control logic and input signal requirements will depend on the application circuit and configuration.
