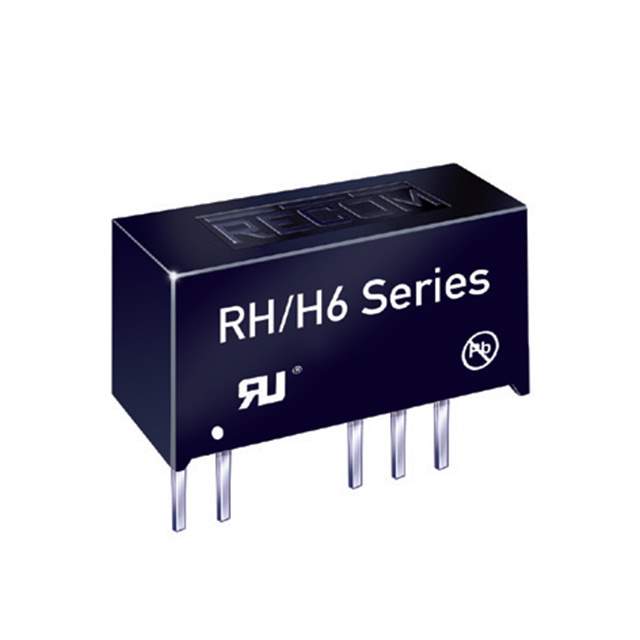

Same model may have multiple batches, images only for reference.

RK-0505S/H6

Name: RK-0505S/H6
Brand: Recom Power
SKU: 1088500
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RK-0505S/H6
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet	RK-0505S/H6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RK/H6 (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	6.4 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 90°C
Efficiency	77%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Dimension	0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm)
Base Product Number	RK-0505
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	945-2421-5,10017915
Standard Package	25
Win Source Part Number	1088500-RK-0505S/H6
Ultra Librarian 3D Model	Ultra Librarian RK-0505S/H6 CAD Model

Description

The Recom Power ECONOLINE RK/H6 (1W) series DC-DC converter is an isolated module with a single output of 5V and a current rating of 200mA.

Output: Single output of 5V
Current Rating: 200mA
Features: SCP
Voltage Isolation: 6.4kV
Package: 7-SIP module with 4 leads
Applications: ITE (Commercial)
Efficiency: 77%
Temperature Range: -40°C to 90°C
Dimension: 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm)
Alternative Parts: ROE-0505S, RO-0505S/P, RB-0505S, TMA 0505S, TME 0505S, PCSA1-S5-S5-S10017915, RK-0505SH6, and RK0505S/H6
