Same model may have multiple batches, images only for reference.

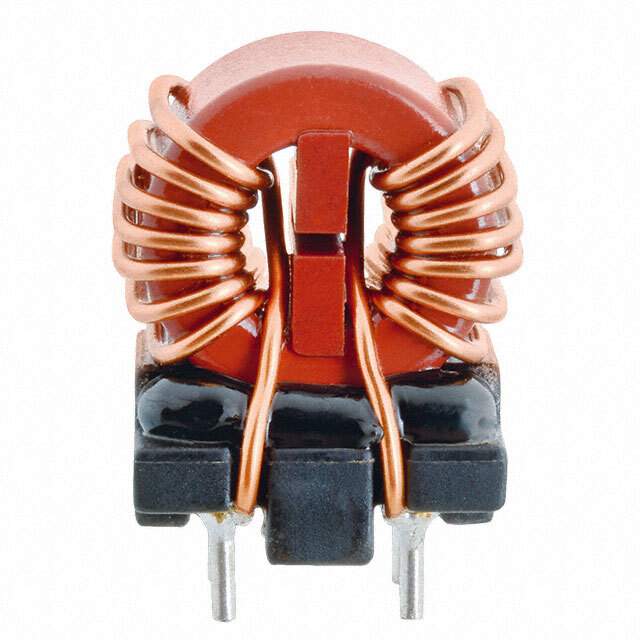

7448262510 Real Image
Same model may have multiple batches, images only for reference.

7448262510

Part No 7448262510
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1MH 25A 2LN TH / 1 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 25A DCR 4.5mOhm
Datasheet
7448262510 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Würth Elektronik
Series WE-CMB
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 25A
DC Resistance (DCR) (Max) 4.5mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 1.732" L x 0.925" W (44.00mm x 23.50mm)
Height (Max) 1.693" (43.00mm)
Package / Case Vertical, 4 PC Pin
Standard Package 18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1349540-7448262510
Ultra Librarian 3D Model Ultra Librarian 7448262510 CAD Model

Description

The WE-CMB is a common mode choke filter designed for power line filtering applications.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 25A
  • Filter Type: power line
  • Lines: 2
  • Inductance @ Frequency: 1mH @ 100 kHz
  • Mounting Type: through-hole
  • Package: vertical, 4 PC pin
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Würth Elektronik
