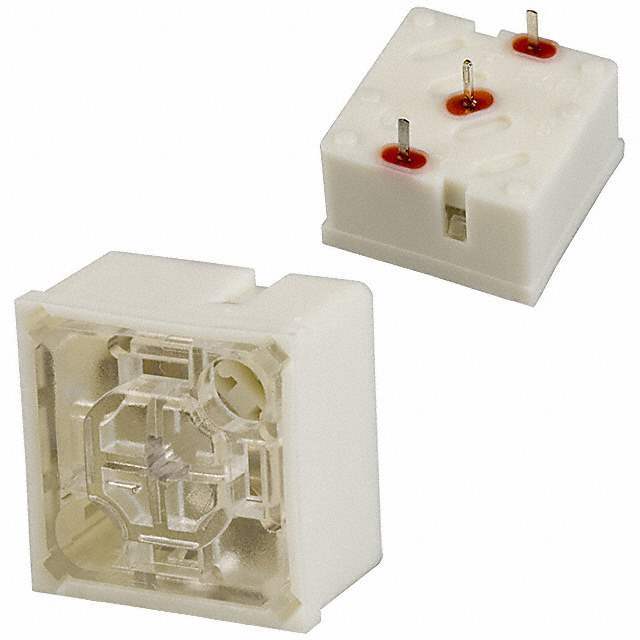

3.14.100.006/0000 RAFI USA
Same model may have multiple batches, images only for reference.

3.14.100.006/0000

Part No 3.14.100.006/0000
Manufacturer RAFI USA
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.25A 35V
Datasheet
3.14.100.006/0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307439-3.14.100.006/0000
Category Switches Tactile Switches
Mfr RAFI USA
Packaging Tube
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.25A @ 35VAC/DC
Actuator Type Square Button
Mounting Type Through Hole
Actuator Height off PCB, Vertical 9.70mm
Ultra Librarian 3D Model Ultra Librarian 3.14.100.006/0000 CAD Model

Description

Low-profile keyboards with RF 15 components should be designed with a19.05 mm grid,With this grid, frame webs remain free between the indivi-dual keys.The overlay can be glued onto these frame webs; we recom-mend area embossing over the keys for the overlays.
