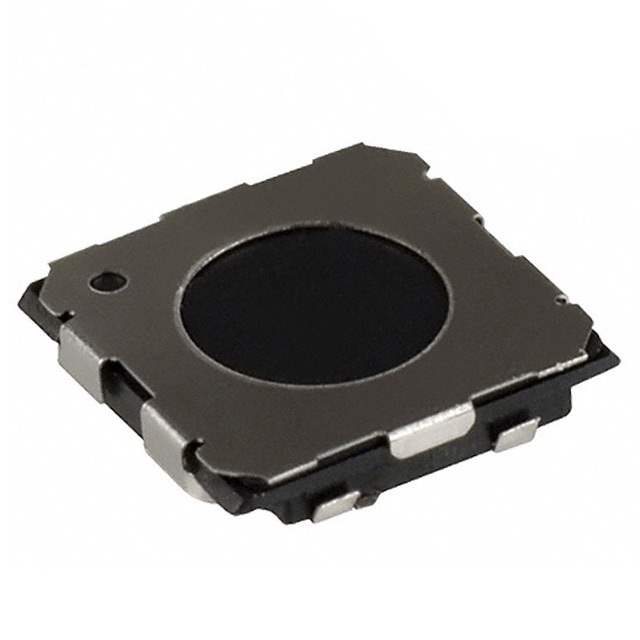

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit SPDT
Switch Function Off-Mom-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Without
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 0.90mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100/260gf
Switch Travel 0.40mm, 0.60mm
Mechanical Life 30,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 001032-EVQ-PRHA09
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Portable Devices, Imaging, Video & Vision, Audio, Consumer Electronics
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian EVQ-PRHA09 CAD Model

Description

EVQ-PRHA09 Features and Benefits

  • Low Power Consumption: Ideal for battery-operated devices.
  • Responsive Touch: Ensures user satisfaction.
  • Compact and Lightweight: Supports sleek designs.

Applications

  • Portable Electronics
  • Remote Controls
  • Security Devices

The EVQ-PRHA09 combines low power consumption with a compact form factor, making it perfect for portable electronics. It offers reliable, responsive touch input and is a valuable component for security devices and remote control applications.
