Same model may have multiple batches, images only for reference.

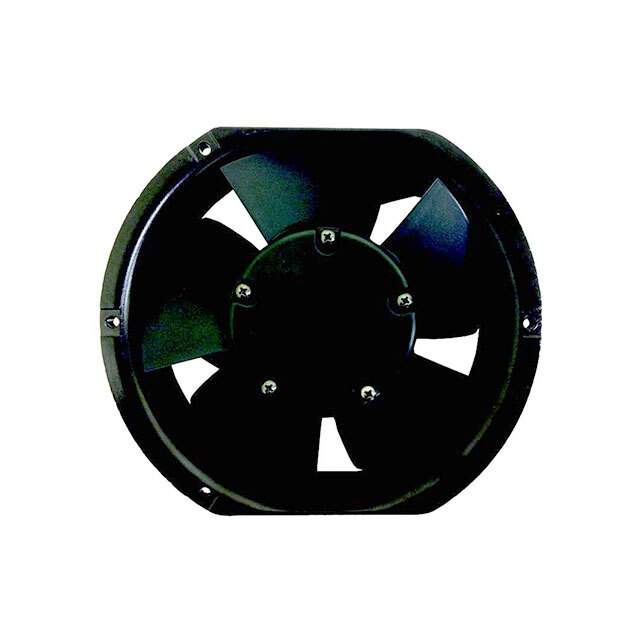

FDD1-17251CBLW33-56 Real Image
Same model may have multiple batches, images only for reference.

FDD1-17251CBLW33-56

Part No FDD1-17251CBLW33-56
Manufacturer Qualtek
Catalog DC Fans
Description FAN AXIAL 172X51MM 12VDC WIRE
Datasheet
FDD1-17251CBLW33-56 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Qualtek
Series HPLC, FDD1-17251
Voltage Rating DC 12VDC
Dimension Rectangular/Rounded - 172mm L x 151mm H
Width 51mm
Air Flow 255.0 CFM (7.22m3/min)
Static Pressure 0.736 in H2O (183.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Alarm Sensor
Noise 56 dB(A)
Power (Watts) 22.6W
RPM 3200 RPM
Termination 3 Wire Leads
Ingress Protection IP56M - Dust Protected, Water Resistant
Operating Temperature Range -4 ~ 158°F (-20 ~ 70°C)
Approvals CE, TUV, UL
Weight 2.5 lbs (1.1kg)
Current Rating 1.88A
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 50000 Hrs @ 25°C
Win Source Part Number 770242-FDD1-17251CBLW33-56
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FDD1-17251CBLW33-56 CAD Model

Description

This fan is a great choice for those looking for a reliable and efficient cooling solution.

  • Voltage Rating: 12VDC
  • Current Rating: 1.88A
  • Type: Tubeaxial
  • Bearing Type: Ball Bearing
  • Noise Level: 56 dB(A)
  • Air Flow: 255.0 CFM (7.22m3/min)
  • Features: Dust Protected, Water Resistant
  • Ingress Protection: IP56M
  • Dimensions: 172mm L x 151mm H (Rectangular/Rounded)
  • Weight: 2.5 lbs (1.1kg)
  • Approvals: CE, TUV, UL
