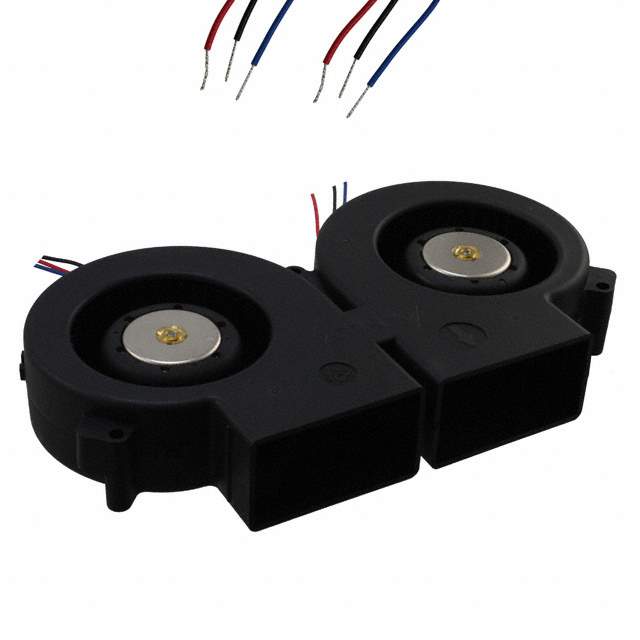

SFB0412VH-F00 Real Image
Same model may have multiple batches, images only for reference.

SFB0412VH-F00

Part No SFB0412VH-F00
Manufacturer Delta Electronics
Catalog DC Fans
Datasheet
SFB0412VH-F00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series SFB
Package Bulk
Voltage - Rated 12VDC
Dimension Rectangular/Rounded - 196mm L x 109mm H
Width 33.00mm
Air Flow 91.0 CFM (2.55m³/min)
Static Pressure 2.694 in H2O (671.1 Pa)
Bearing Type Ball
Fan Type Blower, Centrifugal (Dual)
Features Speed Sensor (Tach)
Noise 67.0dB(A)
Power (Watts) 55.2 W
RPM 5300 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.849 lb (385.1 g)
Current Rating (Amps) 4.60A
Voltage Range 7 ~ 12.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 50000 Hrs @ 40°C
Base Product Number SFB0412
Other Names SFB0412VHF00,603-1464
Standard Package 24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6560
Win Source Part Number 1277315-SFB0412VH-F00
Ultra Librarian 3D Model Ultra Librarian SFB0412VH-F00 CAD Model

Description

The SFB0412VH-F00 is a DC brushless fan manufactured by Delta Electronics.

  • Series: SFB
  • Features: Speed sensor (tach), 3 wire leads for termination
  • Fan Type: Blower, centrifugal (dual)
  • Voltage Range: 7 ~ 12.6VDC
  • Voltage Rating: 12VDC
  • Temperature Range: 14 ~ 140°F (-10 ~ 60°C)
  • Lifetime: 50000 hrs @ 40°C
  • Air Flow: 91.0 CFM (2.55m³/min)
  • Static Pressure: 2.694 in H2O (671.1 Pa)
  • Noise Level: 67.0dB(A)
  • RPM: 5300 RPM
  • Weight: 0.849 lb (385.1 g)
  • Dimension: 196mm L x 109mm H
  • Approvals: CE, CSA, UL, and VDE
