Same model may have multiple batches, images only for reference.

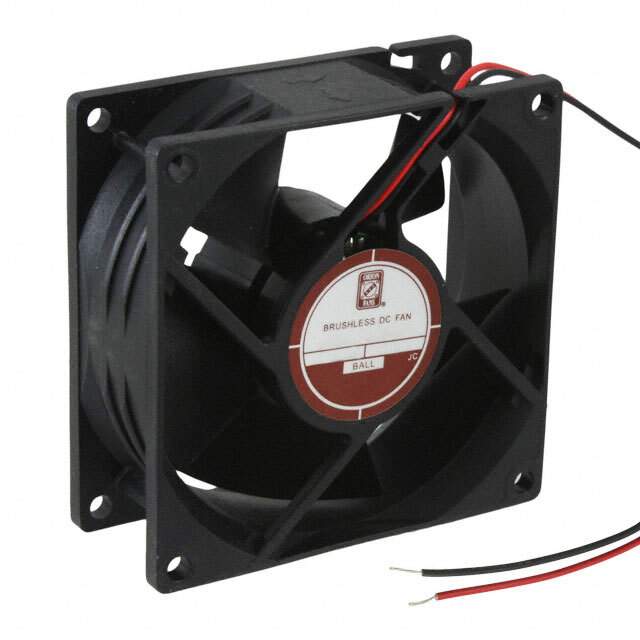

OD8032-48HB Real Image
Same model may have multiple batches, images only for reference.

OD8032-48HB

Part No OD8032-48HB
Manufacturer Orion Fans
Catalog DC Fans
Description FAN AXIAL 80.5X32MM 48VDC WIRE / Fan Tubeaxial 48VDC Square - 80.5mm L x 80.5mm H Ball 50.0 CFM (1.40m³/min) 2 Wire Leads
Datasheet
OD8032-48HB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Orion Fans
Series OD8032
Package Box
Voltage - Rated 48VDC
Dimension Square - 80.5mm L x 80.5mm H
Width 32.00mm
Air Flow 50.0 CFM (1.40m³/min)
Static Pressure 0.430 in H2O (107.1 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 40.0dB
RPM 3800 RPM
Termination 2 Wire Leads
Temperature Range - Operating -4 ~ 176°F (-20 ~ 80°C)
Approval Agency cURus, TUV
Current Rating (Amps) 0.160A
Voltage Range 24 ~ 56VDC
Material - Frame Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Lifetime @ Temp. 60000 Hrs @ 40°C
Base Product Number OD8032
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names OD8032-48HBX,1053-1268,OD803248HB
Standard Package 1
Win Source Part Number 1055034-OD8032-48HB
Ultra Librarian 3D Model Ultra Librarian OD8032-48HB CAD Model

Description

The Orion Fans OD8032-48HB DC brushless fan is a tubeaxial fan with a ball bearing type and a voltage range of 24 ~ 56VDC.

  • Bearing Type: Ball
  • Voltage Range: 24 ~ 56VDC
  • Width: 32.00mm
  • Dimension: Square - 80.5mm L x 80.5mm H
  • Air Flow: 50.0 CFM (1.40m³/min)
  • Static Pressure: 0.430 in H2O (107.1 Pa)
  • Material: Polybutylene Terephthalate (PBT), Fiberglass Reinforced
  • Noise Level: 40.0dB
  • Lifetime: 60000 Hrs @ 40°C
  • Operating Temperature: -4 ~ 176°F (-20 ~ 80°C)
  • Maximum RPM: 3800
  • Current Rating: 0.160A
  • Approvals: cURus and TUV
