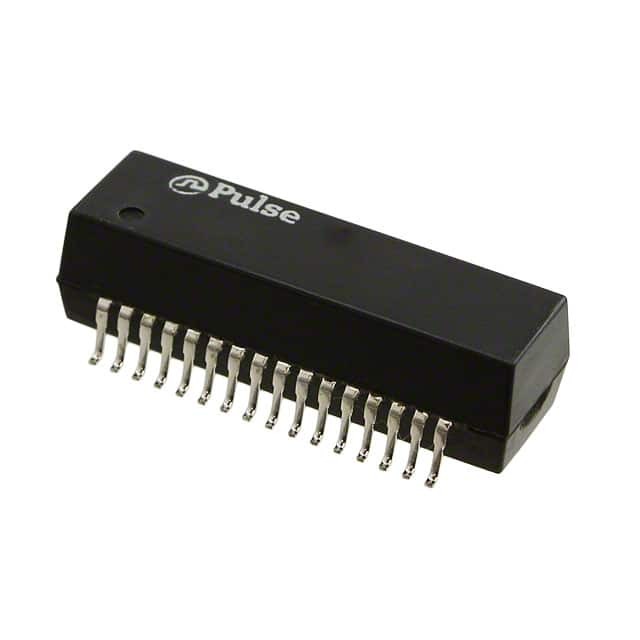

Same model may have multiple batches, images only for reference.
TX1475NLT
Same model may have multiple batches, images only for reference.

TX1475NLT

Part No TX1475NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR OCTAL 1:2/1:1 1.2MH SMD / 1.2mH T1/E1 (Octal) Pulse Transformer 1:2, 1:1 Surface Mount
Datasheet
TX1475NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type T1/E1 (Octal)
Inductance 1.2mH
Mounting Type Surface Mount
Size / Dimension 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) 0.295" (7.49mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.1 oz (2.85 g)
Standard Package 200 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 937931-TX1475NLT
Ultra Librarian 3D Model Ultra Librarian TX1475NLT CAD Model

Description

The 937931-TX1475NLT is a pulse transformer designed for T1/E1 (Octal) applications. It is part of the transformers category and is manufactured by Pulse.

  • Package: Tape & Reel
  • Dimensions: 1.000" L x 0.310" W (25.40mm x 7.87mm)
  • Seated Height: 0.295" (7.49mm)
  • Mounting Type: Surface Mount
  • Inductance: 1.2mH
  • Standard Package: 200 pcs
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
