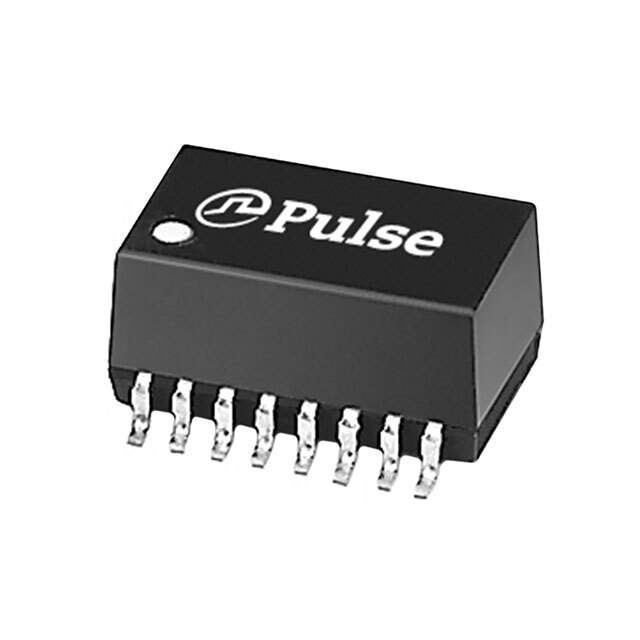

ST6200QNLT Real Image
Same model may have multiple batches, images only for reference.

ST6200QNLT

Part No ST6200QNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR 1:1 SONET/SDH E4/STM-1 SMD / 28µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Datasheet
ST6200QNLT Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel (TR)
Product Status Obsolete
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 28µH
Mounting SMD (SMT)
Dimension 0.455" L x 0.275" W (11.56mm x 6.99mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 900
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232753-ST6200QNLT
Ultra Librarian 3D Model Ultra Librarian ST6200QNLT CAD Model

Description

The ST6200QNLT is a Pulse Transformer that belongs to the Isolation and Data Interface (Encapsulated) type of transformers.

  • Transformer Type: Pulse Transformers
  • Packaging: Tape & Reel (TR)
  • Inductance: 28µH
  • Temperature Range: 0°C to 70°C
  • Dimension: 0.455" L x 0.275" W (11.56mm x 6.99mm)
  • Mounting: SMD (SMT) mounting
  • Manufacturer: Pulse Electronics Network
  • Standard Package: 900
  • Product Status: Now obsolete
  • ECCN: EAR99
