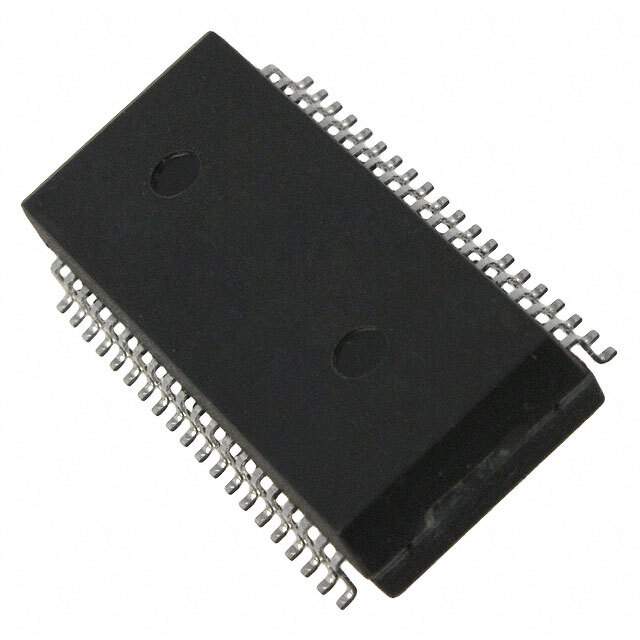

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type T1/E1 (Quad)
Inductance 1.2mH, 1.2mH
Mounting Style SMD
Parts Dimension 1.125" L x 0.485" W (28.58mm x 12.32mm)
Height - Seated (Maximum) 0.230" (5.84mm)
Temperature Range - Operating 0°C ~ 70°C
Manufacturer Pack Quantity 15
MSL Level 4 (72 Hours)
Win Source Part Number 1263365-T1068NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T1068NL CAD Model

Description

The Pulse Electronics Network transformer, with Win Source Part Number 1263365-T1068NL, is a T1/E1 (Quad) type transformer with an inductance of 1.2mH, 1.2mH. Its manufacturer, Pulse Electronics Network, offers a pack quantity of 15.

  • Type: T1/E1 (Quad)
  • Inductance: 1.2mH, 1.2mH
  • Mounting Style: SMD
  • Package: Tube
  • Temperature Range: 0°C to 70°C
  • Height: 0.230" (5.84mm)
  • Category: Transformers
  • Popularity: Popular
  • Supply and Demand Status: Limited
  • MSL Level: 4 (72 hours)
  • Parts Dimension: 1.125" L x 0.485" W (28.58mm x 12.32mm)
