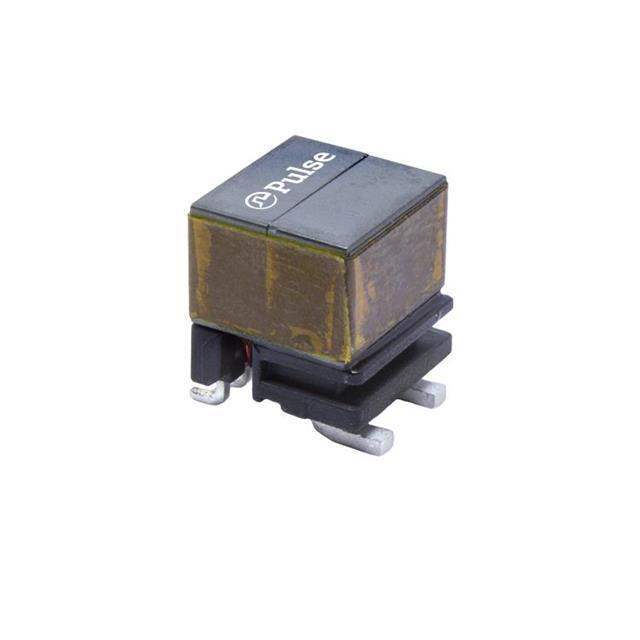

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers >Current Sense Transformers
Manufacturer Pulse Electronics
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Frequency Range 20kHz
Type Invasive
Current Rating (Amps) 30 A
Inductance 7 mH
DC Resistance (DCR) 0.5mOhm Primary, 3.1Ohm Secondary Max
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian PH9505.100NLT CAD Model

Description

  • Insulation: Reinforced, 6.5mm creepage
  • Isolation: 3000Vrms
  • Height: 14.4mm
  • Max Footprint: 13.6mm x 12.8mm
  • Max Current Rating: up to 30A
  • Operating Frequency: Greater than 20kHz
