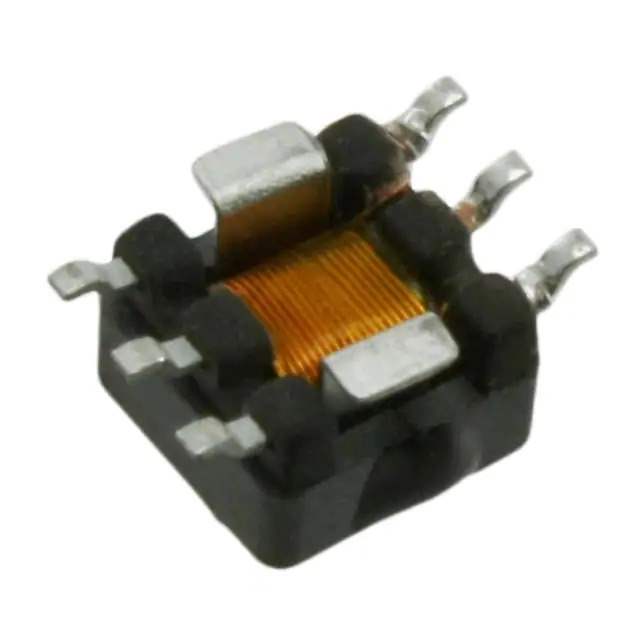

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Current Sense Transformers
Mfr Pulse
Series P820X
Package Tray
Product Status Obsolete
Frequency Range 50kHz ~ 1MHz
Type Invasive
DC Resistance (DCR) 6mOhm
Mounting Type Surface Mount
Size / Dimension 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) 0.217" (5.50mm)
Standard Package 120 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 652135-P8205
Ultra Librarian 3D Model Ultra Librarian P8205 CAD Model

Description

The 652135-P8205 is a current sense transformer designed for use in transformers in the category of Transformers - Current Sense Transformers. This transformer belongs to the P820X series and is of the invasive type.

  • Package: It is packaged in a tray, with a size/dimension of 0.284" L x 0.330" W (7.21mm x 8.38mm).
  • Height: It has a maximum seated height of 0.217" (5.50mm).
  • Frequency Range: The frequency range for this transformer is 50kHz to 1MHz.
  • Mounting: It is suitable for surface mount applications and has a DC resistance (DCR) of 6mOhm.
  • ECCN: The ECCN of this transformer is EAR99, and it is not affected by REACH regulations.
  • HTSUS: The HTSUS code for this product is 8504.50.8000.
  • MSL: The MSL level is 1 (Unlimited).
  • Status: This transformer is an obsolete product manufactured by Pulse.
