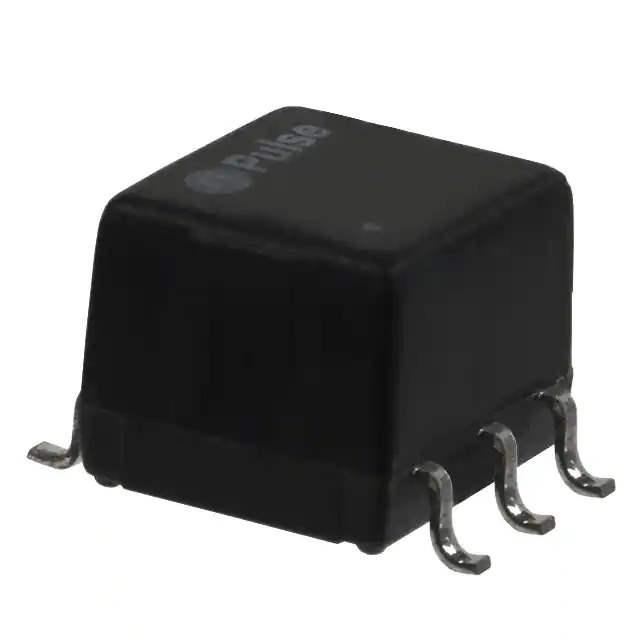

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Bulk
Product Status Obsolete
Transformer Type T3/E3 (Single)
Inductance 19µH
Mounting Type Surface Mount
Size / Dimension 0.300" L x 0.275" W (7.62mm x 7.00mm)
Height - Seated (Max) 0.245" (6.23mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.14 oz (3.99 g)
Standard Package 70 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 888879-PE-65968
Ultra Librarian 3D Model Ultra Librarian PE-65968 CAD Model

Description

The 822342 is a pulse transformer used in electronic circuits and manufactured by Pulse.

  • Category: Transformers - Pulse Transformers
  • Package: Bulk
  • Size / Dimension: 0.300" L x 0.275" W (7.62mm x 7.00mm)
  • Height - Seated (Max): 0.245" (6.23mm)
  • Application: T3/E3 (Single)
  • Inductance: 19μH
  • Standard Package: 70 pcs
  • Weight: 0.14 oz (3.99 g)
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C ~ 70°C
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • MSL Level: 3 (168 Hours)
