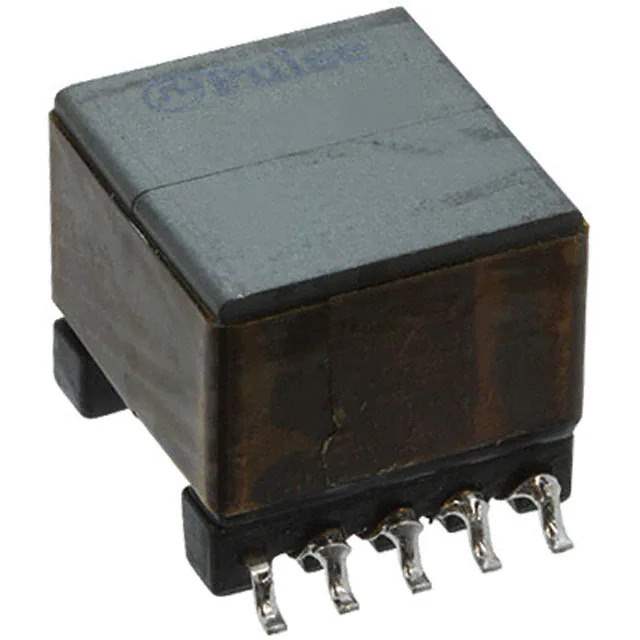

PA1269NLT Real Image
Same model may have multiple batches, images only for reference.

PA1269NLT

Part No PA1269NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR 3.3V 13.5W 77.4UH POE EP13 / 77.4μH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:0.182:0.682 Surface Mount
Datasheet
PA1269NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Series EP13
Package Tape & Reel
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 77.4µH
Mounting Type Surface Mount
Size / Dimension 0.551" L x 0.695" W (14.00mm x 17.65mm)
Height - Seated (Max) 0.500" (12.70mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 150 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 888508-PA1269NLT
Ultra Librarian 3D Model Ultra Librarian PA1269NLT CAD Model

Description

The Pulse 888508-PA1269NLT is an isolation and data interface pulse transformer designed for electronic components.

  • Packaging: Tape and reel
  • Size: 0.551" L x 0.695" W (14.00mm x 17.65mm)
  • Inductance: 77.4µH
  • Height: 0.500" (12.70mm)
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 130°C
  • Status: Active
