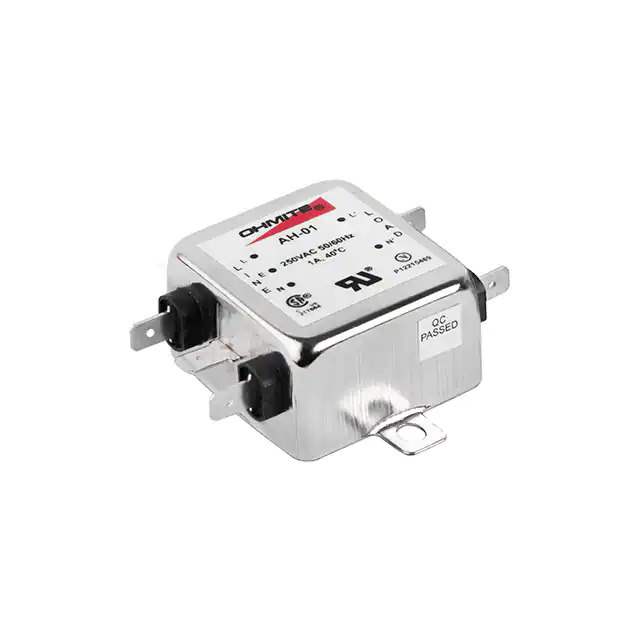

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Power Line Filter Modules
Mfr Ohmite
Series AH
Package Box
Product Status Active
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated AC 110V, 250V
Current 10 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency cCSAus, CE, UR
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 860733-AH-10
Ultra Librarian 3D Model Ultra Librarian AH-10 CAD Model

Description

The AH series power line filter module is a high-quality electronic component designed for general-purpose applications.

  • Filter Type: Two-Stage
  • Power Line: Single-Phase
  • Current Rating: 10A
  • Rated AC Voltage: 110V, 250V
  • Termination Style: Quick Connect
  • Package: Box
  • Frequency: 50/60Hz
  • Temperature Range: -25°C to 85°C
  • Manufacturer: Ohmite
  • Product Status: Active
  • Approvals: cCSAus, CE, UR
