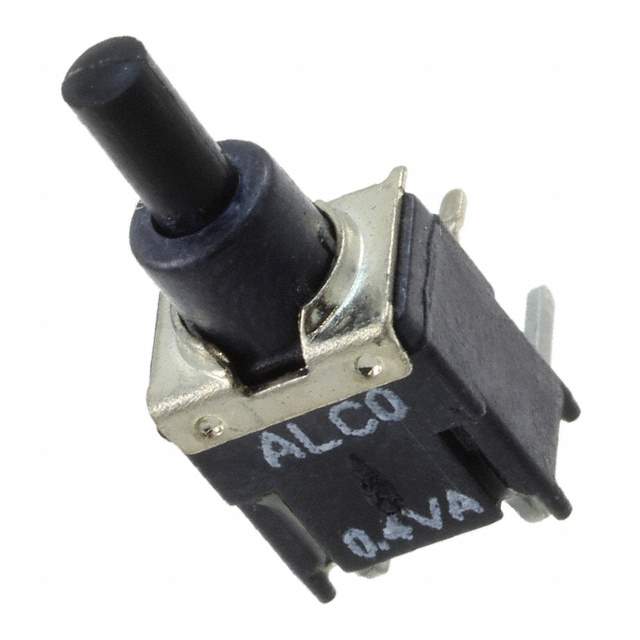

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series TSP
Package Bulk
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Features Process Sealed
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 80,000 Cycles
Base Product Number 1571990
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9031
Other Names TSPD11CGRA004,1571990-4-ND,-TSPD11CGRA004-SI-ND,-1571990-4-SI,450-1834,-TSPD11CGRA004-SI,2266-1571990-4
Standard Package 25
Win Source Part Number 1101522-1571990-4
Ultra Librarian 3D Model Ultra Librarian 1571990-4 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches TSP pushbutton switch is a standard type switch with a circuit of SPST-NO. TE Connectivity ALCOSWITCH Switches TSP pushbutton switch is a standard type switch with a circuit of SPST-NO.

  • Termination Style: PC pin
  • Package: 25
  • Process Sealed: Yes
  • Electrical Life: 80,000 cycles
  • MSL Level: 1 (unlimited)
  • REACH Status: vendor undefined
  • HTSUS: 8536.50.9031
