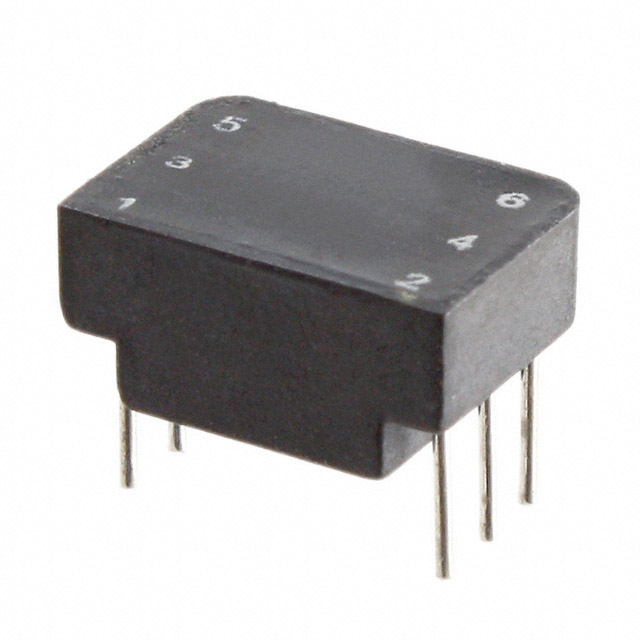

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 3.5mH, 6.5mH
Mounting Through Hole
Height - Seated (Max) 0.250" (6.35mm)
Weight 0.14 oz (3.99g)
Win Source Part Number 045704-PE-65948
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-65948 CAD Model

Description

The Pulse Electronics Corporation Isolation and Data Interface (Encapsulated) Transformer is a high-performance transformer designed for through-hole mounting.

  • Maximum Current: 20A
  • Inductance: 80mH
  • Frequency Range: 20kHz to 200kHz
  • DC Resistance (DCR): 200 Ohm Primary, 4.5 Ohm Secondary
  • Height (Seated): 0.250" (6.35mm)
  • Packaging: Tube/Rail
  • Weight: 0.14 oz (3.99g)
  • Product Status: Active
  • Market Popularity: Medium
