Same model may have multiple batches, images only for reference.

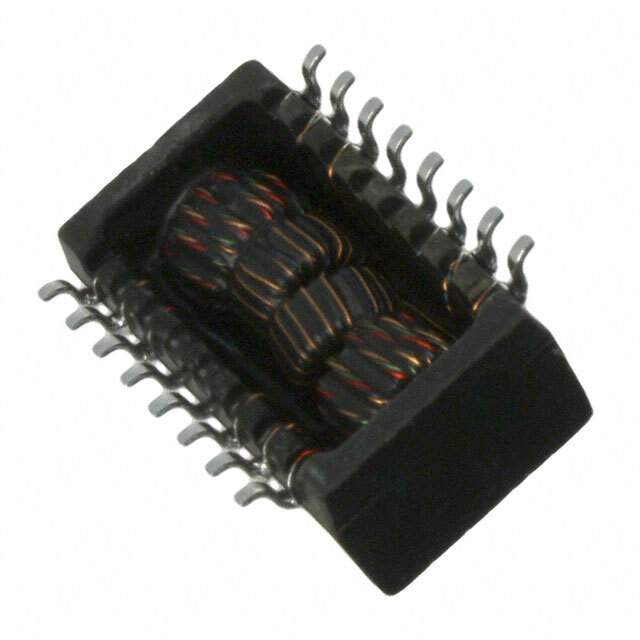

S558-5999-Z5-F Real Image
Same model may have multiple batches, images only for reference.

S558-5999-Z5-F

Part No S558-5999-Z5-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description MODULE XFRMR LAN 10/100B-TX SMD / Telecom Transformer 2(1CT:1CT) 16 Terminal Gull Wing SMD
Datasheet
S558-5999-Z5-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Bel Fuse Inc.
Packaging Reel package
Transformer Type LAN 10/100 Base-T
Inductance 350μH
Mounting SMD
Dimension 0.485" L x 0.285" W (12.32mm x 7.24mm)
Height - Seated (Maximum) 0.225" (5.72mm)
Win Source Part Number 793650-S558-5999-Z5-F
Popularity Medium
Supply and Demand Status Limited
Family Name S558
Introduction Date September 24, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian S558-5999-Z5-F CAD Model

Description

Bel Fuse Inc. produces a high-quality transformer with Win Source Part Number 793650-S558-5999-Z5-F.

  • Type: LAN 10/100 Base-T Transformer
  • Inductance: 350μH
  • Mounting Type: SMD
  • Dimensions: 0.485" L x 0.285" W (12.32mm x 7.24mm)
  • Height Seated (Maximum): 0.225" (5.72mm)
  • Popularity: Medium
  • Supply and Demand Status: limited
