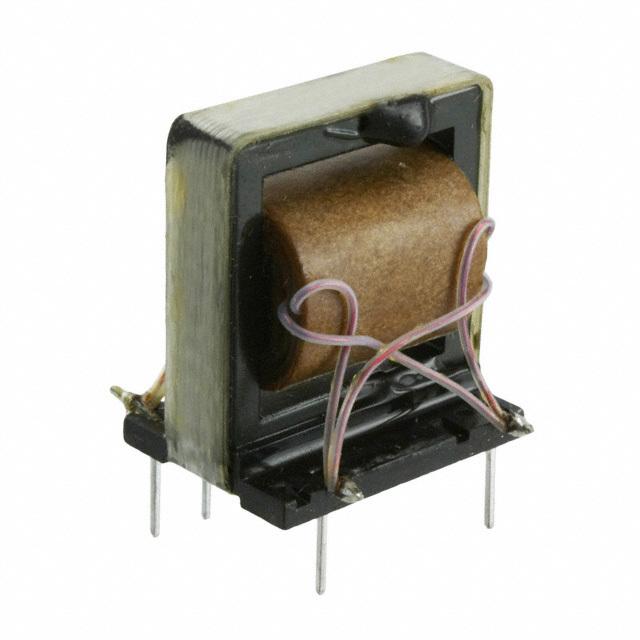

Same model may have multiple batches, images only for reference.
PE-63387 Pulse
Same model may have multiple batches, images only for reference.

PE-63387

Part No PE-63387
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1:1 1.5MH
Datasheet
PE-63387 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Obsolete
Inductance 1.5mH
ET (Volt-Time) 320VµS
Mounting Type Through Hole
Size / Dimension 1.090" L x 0.750" W (27.69mm x 19.05mm)
Height - Seated (Max) 1.200" (30.48mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 272048-PE-63387
Ultra Librarian 3D Model Ultra Librarian PE-63387 CAD Model

Description

The 279221 is a pulse transformer designed for use in electronic circuits.

  • Category: Transformers - Pulse Transformers
  • Package: Tray
  • Size: 1.090" L x 0.750" W (27.69mm x 19.05mm)
  • Height (Max): 1.200" (30.48mm)
  • Inductance: 1.5mH
  • Temperature Range: 0°C to 70°C
  • Standard Package: 30 pcs
  • Mounting Type: Through-hole
  • ECCN: EAR99 compliant
  • REACH: Unaffected by REACH regulations
  • Manufacturer: Pulse
  • ET (Volt-Time): 320VμS
