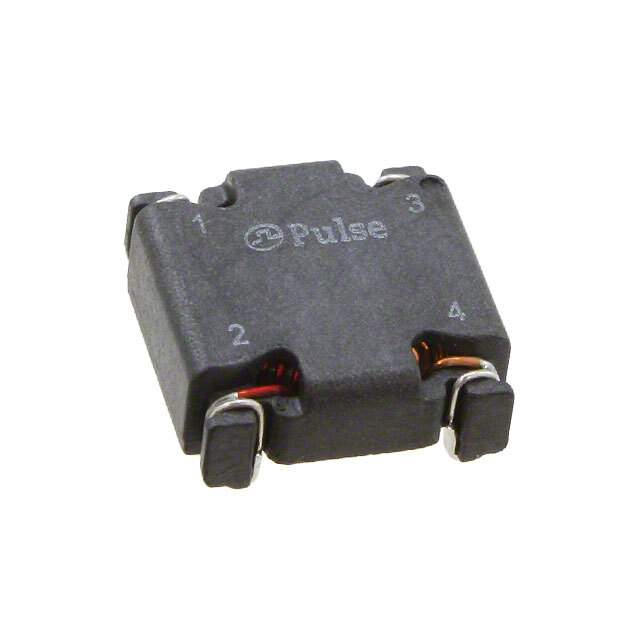

PA2747NL Real Image
Same model may have multiple batches, images only for reference.

PA2747NL

Part No PA2747NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 7A 2LN SMD / 2 Line Common Mode Choke Surface Mount 7A DCR 2.9mOhm
Datasheet
PA2747NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Pulse Electronics Power
Package Tube
Number of Lines 2
Current Rating (Max) 7A
DC Resistance (DCR) (Max) 2.9mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting SMD (SMT)
Dimension 0.508" L x 0.500" W (12.90mm x 12.70mm)
Height (Max) 0.220" (5.60mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names PA2747NL-ND,553-2185
Standard Package 40
Win Source Part Number 1187737-PA2747NL
Ultra Librarian 3D Model Ultra Librarian PA2747NL CAD Model

Description

The Pulse Electronics Power 1187737-PA2747NL is a common mode choke used in filters.

  • Type: Common Mode Choke
  • Application: Filters
  • Maximum Current Rating: 7A
  • DC Resistance (DCR): 2.9mOhm
  • Mounting: SMD (SMT)
  • Height: 0.220" (5.60mm)
  • Temperature Range: -40°C to 130°C
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
