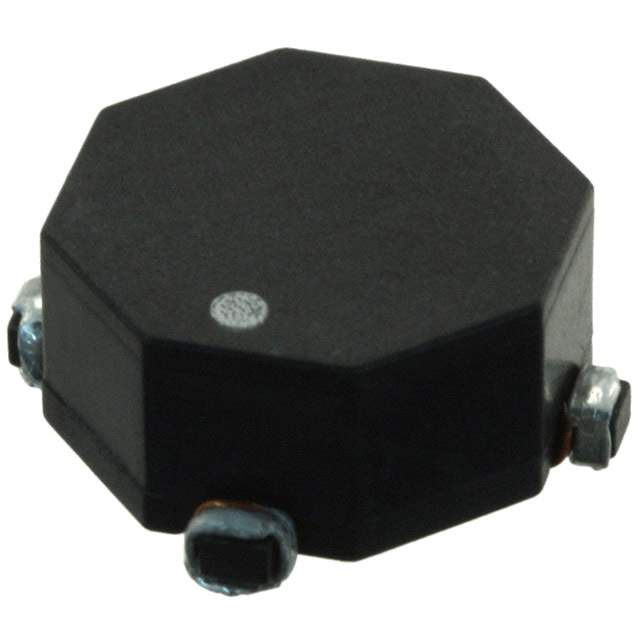

CMS3-8-R Real Image
Same model may have multiple batches, images only for reference.

CMS3-8-R

Part No CMS3-8-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 350UH 2A 2LN SMD / 350 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 2A DCR 40mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Eaton - Electronics Division
Series CMS
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 350 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 40mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting SMD (SMT)
Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height (Max) 0.236" (6.00mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 283-4056-6,CMS3-8-ND,283-4056-2,CMS3-8-R-ND,CMS38R,CMS3-8,283-4056-1
Standard Package 600
Win Source Part Number 1153976-CMS3-8-R
Ultra Librarian 3D Model Ultra Librarian CMS3-8-R CAD Model

Description

The CMS3-8-R electronic component is a common mode choke manufactured by Eaton - Electronics Division.

  • Type: Power Line Filter
  • Current Rating: 2A
  • Inductance: 350 uH @ 100 kHz
  • DC Resistance: 40 mOhm
  • Temperature Range: -40°C to 160°C
