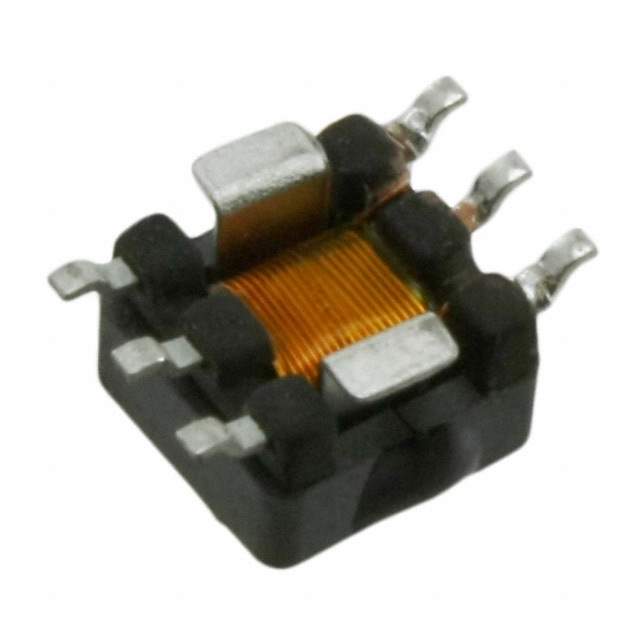

P8205NLT

Get a Quote

Part No	P8205NLT
Manufacturer	Pulse
Catalog	Current Sense Transformers
Description	CURR SENSE XFMR 1:50 SMD / 1:50 Current Sense Transformer 50kHz ~ 1MHz 6mOhm Primary, 1.5Ohm Secondary 500 µH Surface Mount
Datasheet	P8205NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Transformers>Current Sense Transformers
Mfr	Pulse Electronics Power
Series	P820X
Package	Tape & Reel
Frequency Range	50kHz ~ 1MHz
Type	Invasive
Inductance	500 µH
DC Resistance (DCR)	6mOhm Primary, 1.5Ohm Secondary
Mounting	SMD (SMT)
Dimension	0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max)	0.217" (5.50mm)
Termination Style	Gull Wing
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.31.2000
Other Names	553-1520-2,553-1520-1,P8205NLT-ND,553-1520-6
Standard Package	900
Win Source Part Number	984965-P8205NLT
Ultra Librarian 3D Model	Ultra Librarian P8205NLT CAD Model

Alternative Products

Product Part Number	Manufacturer	Package	Country	Similarity	Description

Description

The P8205NLT is a current sense transformer from Pulse Electronics Power.

Type: Invasive
Series: P820X
Termination Style: Gull Wing
Package: Tape and Reel
Inductance: 500 µH
Frequency Range: 50kHz to 1MHz
DC Resistance (Primary): 6mOhm
DC Resistance (Secondary): 1.5Ohm
Dimensions: 0.284" L x 0.330" W (7.21mm x 8.38mm)
Applications: Power Supplies, Motor Controls, and Lighting
