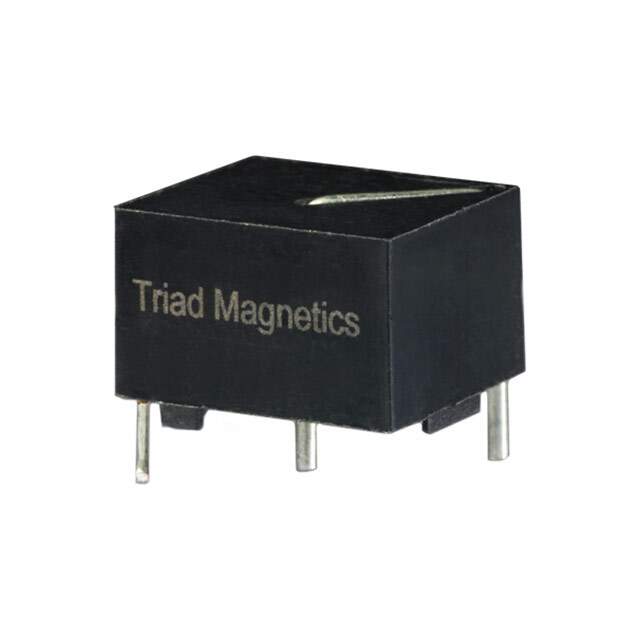

The CST25-0200 from Triad Magnetics is a current sense transformer with an inductance of 76mH and a DC resistance of 4.5 ohms. It has a current rating of 125mA and a frequency range of 50kHz to 500kHz. The CST25-0200 is suitable for invasive type applications and is available in a through-hole package. It has a dimension of 0.669" L x 0.591" W (17.00mm x 15.00mm) and a height of 0.472" (12.00mm). in the open market.

• Manufacturer: Triad Magnetics
• Type: Current Sense Transformer
• Inductance: 76mH
• DC Resistance: 4.5 ohms
• Current Rating: 125mA
• Frequency Range: 50kHz to 500kHz
• Application: Invasive Type
• Package: Through-Hole
• Dimension: 0.669" L x 0.591" W (17.00mm x 15.00mm)
• Height: 0.472" (12.00mm)
