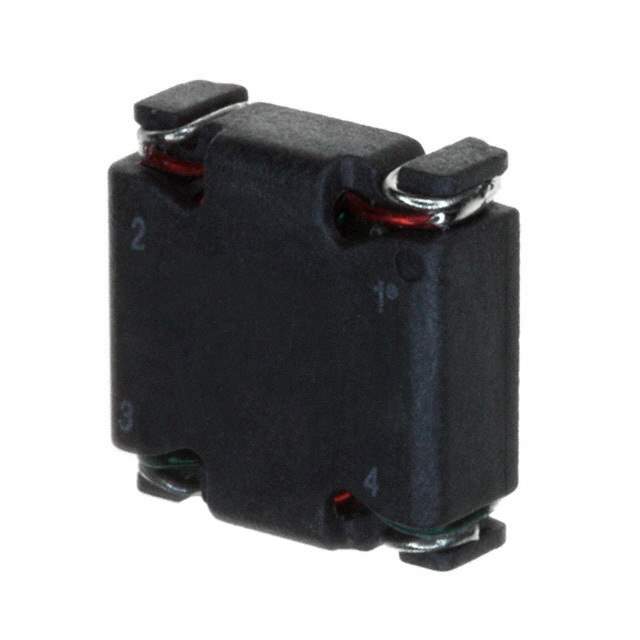

P0177NLT Real Image
Same model may have multiple batches, images only for reference.

P0177NLT

Part No P0177NLT
Manufacturer Pulse
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 10.4UH SMD / Inductor Power Toroid 10.4uH/41.7uH 10% 3.8A/1.89A 0.0298Ohm/0.12Ohm DCR T/R
Datasheet
P0177NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Series Polecat
Packaging Reel package
Number of Coils 2
Test Inductance - Connected In Series 41.7μH
Inductance - Connected In Parallel 10.4μH
Tolerance ±10%
Current Rating - Parallel 3.8A
Current Rating - Series 1.89A
DC Resistance (DCR) - Parallel 29.8 mOhm Max
DC Resistance (DCR) - Series 120 mOhm Max
Shielding Unshielded
Operating Temperature Range -40°C ~ 130°C
Mounting SMD
Package Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height 0.215" (5.46mm)
Win Source Part Number 791075-P0177NLT
Popularity Medium
Supply and Demand Status Limited
Family Name Polecat
Introduction Date March 19, 2003
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian P0177NLT CAD Model

Description

The Pulse Electronics Corporation Polecat series inductor is a nonstandard package surface-mount device.

  • Height: 0.215 inches (5.46mm)
  • Dimension: 0.500 inches L x 0.500 inches W (12.70mm x 12.70mm)
  • Inductance (Parallel): 10.4μH
  • Inductance (Series): 41.7μH
  • Current Rating (Parallel): 3.8A
  • Current Rating (Series): 1.89A
  • DC Resistance (DCR) (Parallel): 29.8 mOhm Max
  • DC Resistance (DCR) (Series): 120 mOhm Max
  • Tolerance: ±10%
