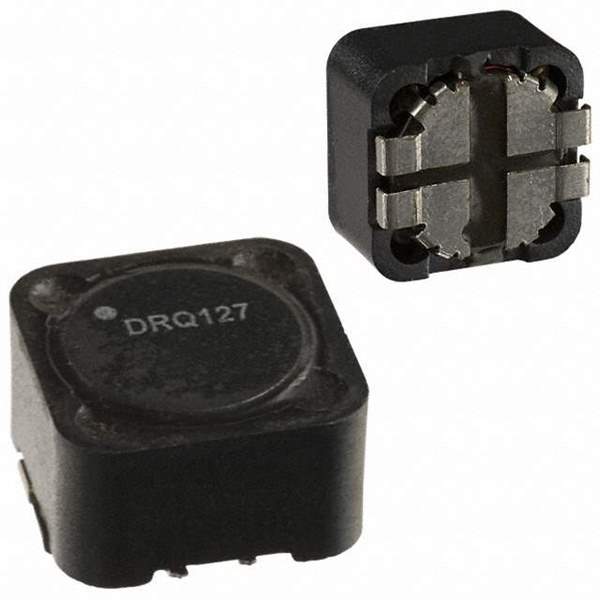

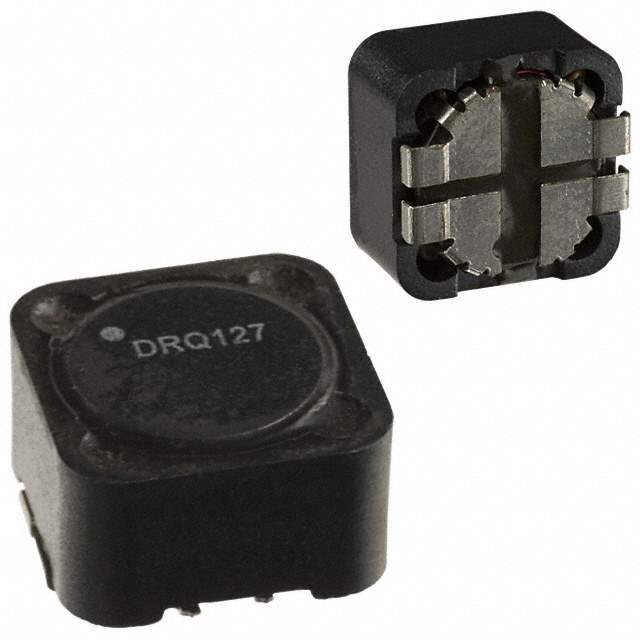

DRQ127-151-R Real Image
Same model may have multiple batches, images only for reference.

DRQ127-151-R

Part No DRQ127-151-R
Manufacturer Cooper Bussmann, Inc.
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 144.9UH SMD / Dual Winding, Shielded Inductors/Transformer
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Number of Coils 2
Inductance - Connected In Parallel 144.9μH
Inductance - Connected In Series 579.6μH
Tolerance ±20%
Current Rating - Parallel 1.59A
Current Rating - Series 796mA
Current Saturation - Parallel 3.01A
Current Saturation - Series 1.51A
DC Resistance (DCR) - Parallel 247mOhm
DC Resistance (DCR) - Series 989mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
Manufacturer Pack Quantity 350
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810927-DRQ127-151-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-151-R CAD Model

Description

The Eaton - Electronics Division 810927-DRQ127-151-R is a reel-mounted wirewound inductor that features a shielded design.

  • Tolerance: ±20%
  • Inductance (Series): 579.6μH
  • Inductance (Parallel): 144.9μH
  • Current Rating (Parallel): 1.59A
  • Current Rating (Series): 796mA
  • Category: Inductors, Coils, Chokes
  • Popularity: Medium
  • Operating Temperature Range: -40°C ~ 125°C
  • Height: 0.315" (8.00mm)
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
