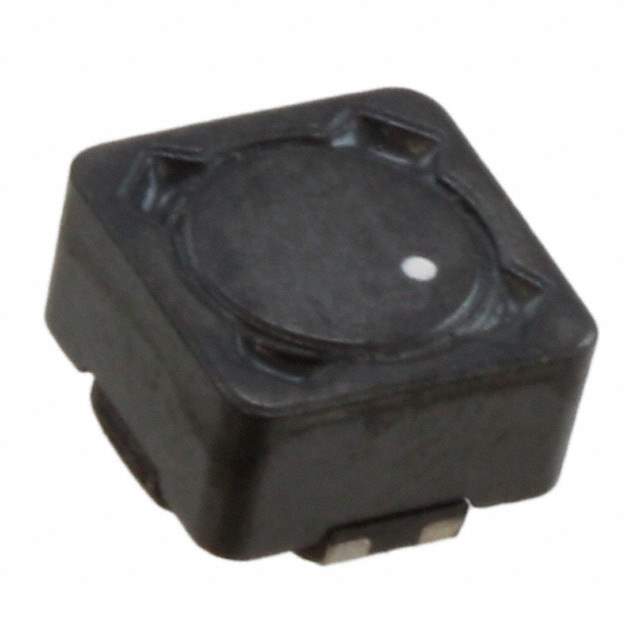

744877008 Real Image 744877008 label picture
Same model may have multiple batches, images only for reference.
744877008 Real Image 744877008 label picture
744877008 Real Image 744877008 label picture
Same model may have multiple batches, images only for reference.

744877008

Part No 744877008
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 8.2UH SMD / POWER-CHOKE WE-DD
Datasheet
744877008 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Number of Coils 2
Inductance - Connected In Parallel 8.2μH
Inductance - Connected In Series 32.8μH
Tolerance ±20%
Current Rating - Parallel 1.7A
Current Rating - Series 850mA
Current Saturation - Parallel 2.9A
Current Saturation - Series 1.45A
DC Resistance (DCR) - Parallel 110mOhm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height 0.189" (4.80mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803248-744877008
Ultra Librarian 3D Model Ultra Librarian 744877008 CAD Model

Description

The Würth Elektronik 803248-744877008 is a shielded SMD inductor with a tolerance of ±20%.

  • Tolerance: ±20%
  • Packaging: Reel
  • Mounting Height: 0.189" (4.80mm)
  • Number of Coils: 2
  • Inductance (Series): 32.8μH
  • Inductance (Parallel): 8.2μH
  • Current Rating (Series): 850mA
  • Current Rating (Parallel): 1.7A
  • Current Saturation (Series): 1.45A
  • Current Saturation (Parallel): 2.9A
  • DC Resistance (DCR) (Parallel): 110mOhm Max
  • Operating Temperature Range: -40°C ~ 125°C
  • Package Dimension: 0.287" L x 0.287" W (7.30mm x 7.30mm)
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
