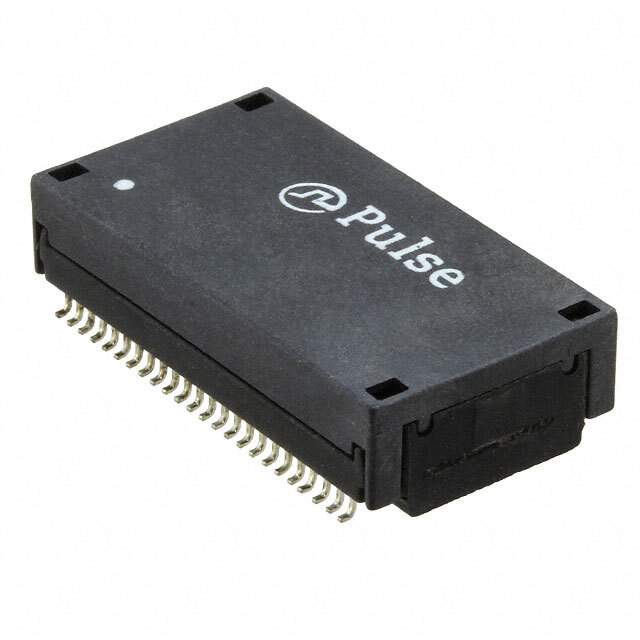

HX5014FNL Real Image
Same model may have multiple batches, images only for reference.

HX5014FNL

Part No HX5014FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description LAN Product Guide - Servers | PULSE XFMR 1 CT:1CT TX/RX 350UH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type LAN 10/100/1000 Base-T
Inductance 350μH
Mounting Style SMD
Parts Dimension 1.095" L x 0.590" W (27.81mm x 14.99mm)
Height - Seated (Maximum) 0.285" (7.24mm)
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Pack Quantity 15
MSL Level 1 (Unlimited)
Win Source Part Number 1182660-HX5014FNL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HX5014FNL CAD Model

Description

The 1182660-HX5014FNL is a medium-popularity transformer manufactured by Pulse Electronics Network.

  • Application: LAN 10/100/1000 Base-T
  • Inductance: 350μH
  • Package: Tube
  • Mounting Style: SMD
  • Temperature Range: -40°C to 85°C
  • Manufacturer Pack Quantity: 15
  • Popularity: Medium
  • Supply and Demand Status: Limited
