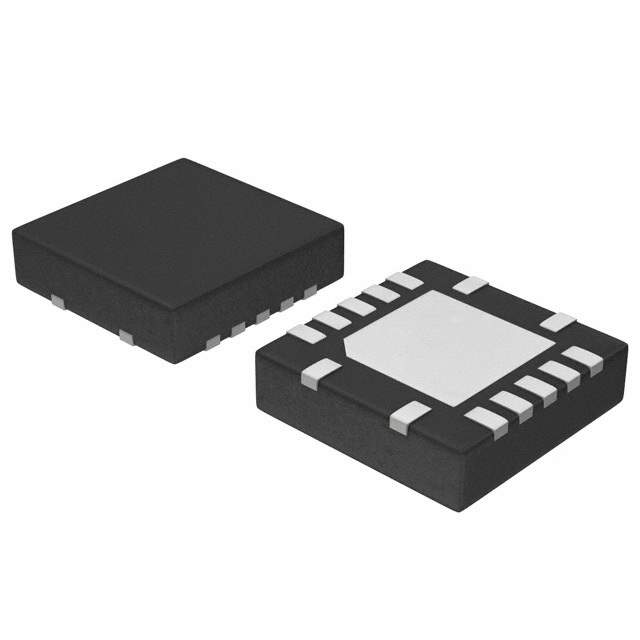

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Translators, Level Shifters
Mfr Union Semiconductor (HK) Limited
Package Tape & Reel (TR)
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 4
Voltage - VCCA 1.65 V ~ 3.6 V
Voltage - VCCB 2.3 V ~ 5.5 V
Output Type Tri-State
Data Rate 100Mbps
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 14-VFQFN Exposed Pad
Supplier Device Package 14-QFN (3.5x3.5)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 3351-UM3304QSTR
Standard Package 3,000
Win Source Part Number 1125015-UM3304QS
Ultra Librarian 3D Model Ultra Librarian UM3304QS CAD Model

Description

The Union Semiconductor (HK) Limited UM3304QS is an integrated circuit that is designed for voltage level translation. The manufacturer is Union Semiconductor (HK) Limited.

  • Data Rate: 100Mbps
  • Channel Type: Bidirectional
  • Channels per Circuit: 4
  • Mounting Type: SMD (SMT)
  • VCCA Voltage Range: 1.65 V ~ 3.6 V
  • VCCB Voltage Range: 2.3 V ~ 5.5 V
  • Packaging: Tape and Reel
  • Standard Package: 3,000
