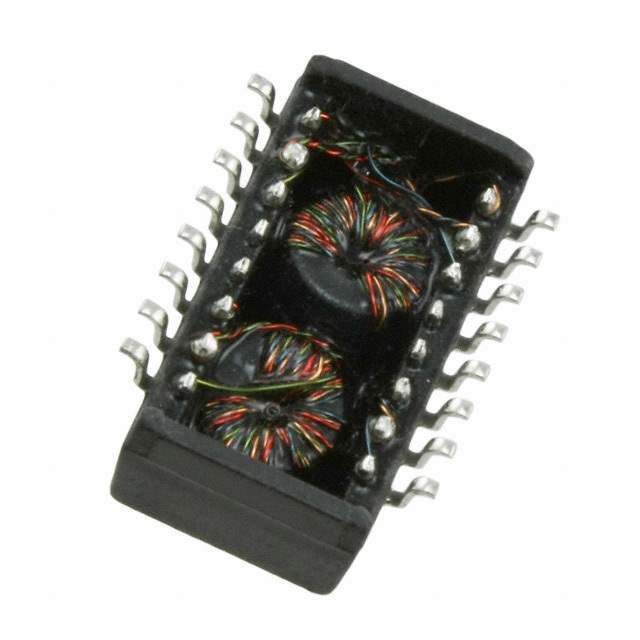

H1197NL Real Image
Same model may have multiple batches, images only for reference.

H1197NL

Part No H1197NL
Manufacturer Pulse
Catalog Pulse Transformers
Description RoHS peak reflow temperature rating 245C | XFRMR MAGNT MOD 1PORT POE 10/100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 0.500" L x 0.265" W (12.70mm x 6.73mm)
Height - Seated (Maximum) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.02 oz (0.57g)
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Win Source Part Number 1178132-H1197NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H1197NL CAD Model

Description

The Pulse Electronics Network Isolation and Data Interface Transformer is a high-quality transformer designed for use in electronic circuits.

  • Encapsulated Transformer Type: Encapsulated
  • Height Seated (Maximum): 0.245" (6.22mm)
  • Category: Transformers
  • Temperature Range: 0°C to 70°C
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 40
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.500" L x 0.265" W (12.70mm x 6.73mm)
