H5149NL
Same model may have multiple batches, images only for reference.

H5149NL

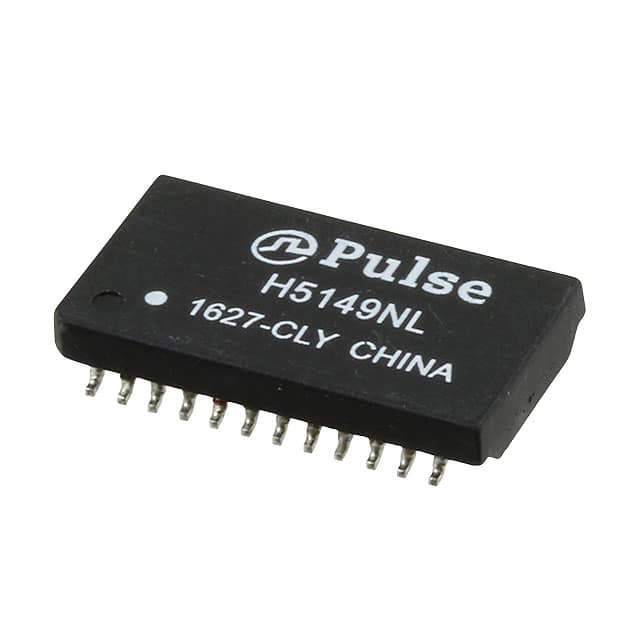

Part No H5149NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet
H5149NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Mounting Type Surface Mount
Size / Dimension 0.701" L x 0.390" W (17.80mm x 9.91mm)
Height - Seated (Max) 0.126" (3.20mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 847757-H5149NL
Ultra Librarian 3D Model Ultra Librarian H5149NL CAD Model

Description

The 847757-H5149NL is a pulse transformer designed for LAN 10/100/1000 Base-T applications. It is part of the Transformers - Pulse Transformers category and is manufactured by Pulse.

  • Package: Tube
  • Size: 0.701" L x 0.390" W (17.80mm x 9.91mm)
  • Height: 0.126" (3.20mm)
  • Mounting Type: Surface Mount
  • Temperature Range: 0°C to 70°C
  • Win Source Part Number: 847757-H5149NL
