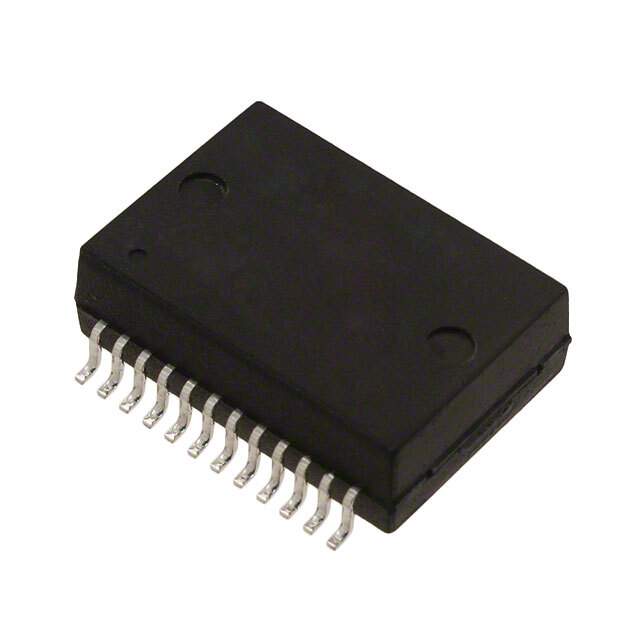

HX5004NLT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.227" (5.76mm)
Weight 0.06 oz (1.71g)
Win Source Part Number 1044391-HX5004NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HX5004
Introduction Date February 14, 2011
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian HX5004NLT CAD Model

Description

The HX5004NLT from Pulse Electronics Corporation is an encapsulated isolation and data interface transformer.

  • Height: 0.227 inches
  • Weight: 0.06 oz
  • Packaging: reel
  • Mounting: surface mountable
  • Family: HX5004 family
  • Status: active
  • Estimated EOL Date: 2028
  • Halogen-Free: Not halogen-free
  • Manufactured in: China
  • ECCN: EAR99
